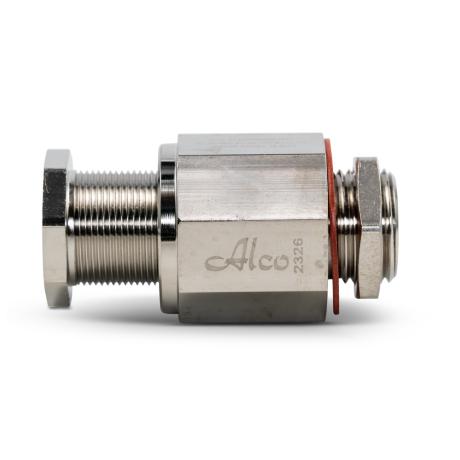

Cable Gland Brass Hazardous Weatherproof M20 | IP66/68 Rated | Unarmoured Cable Diameter 10-14mm | by Wattmaster
The Cable Gland Brass Hazardous Weatherproof M20 is designed for unarmoured cables with a diameter of 10-14mm, ensuring robust sealing in hazardous areas. With an IP66/68 rating, it provides exceptional weatherproofing and is certified for safety in explosive environments. Ideal for industrial electrical installations, this durable brass gland includes a locknut for secure fitting, making it a reliable choice for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Weatherproof M20 | IP66/68 Rated | Unarmoured Cable Diameter 10-14mm | by Wattmaster
Brand: Wattmaster
SKU: ALCHUW20B
Alternatively Known As: Brass Cable Gland M20, Hazardous Area Cable Gland, Weatherproof Cable Gland, Ex Cable Gland M20
Technical Specifications
- Cable Diameter: 10-14mm
- Thread Size: M20
- Thread Length: 12mm
- Material: Brass
- Ingress Protection: IP66/68 (30m)
- Certification: IEC Ex TSA 13.0002, ANZ Ex 13.3001
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Locknut: Supplied as standard
- Ex Ratings: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Dimensions (H x L x W): 20mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Suitable for unarmoured cables with diameter 10-14mm
- Brass construction for durability and corrosion resistance
- Weatherproof with IP66/68 rating (30m)
- Certified for hazardous areas: IEC Ex TSA 13.0002, ANZ Ex 13.3001
- Includes locknut as standard
- Complies with IEC/AS/NZS 60079 series and IEC 60529 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area cable sealing
- Industrial electrical installations requiring weatherproof and explosion-proof cable glands
- Use in Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous environments
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass material reduces need for frequent replacements, minimizing waste
- Weatherproof design protects electrical systems, reducing risk of environmental contamination
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
The Wattmaster Brass Hazardous Weatherproof M20 Cable Gland is available for immediate purchase, ideal for hazardous area electrical installations requiring robust and certified cable sealing.
