Cable Gland Brass Hazardous Weatherproof M20 | IP66/68 Rated | Ex Certified | @Each by Wattmaster

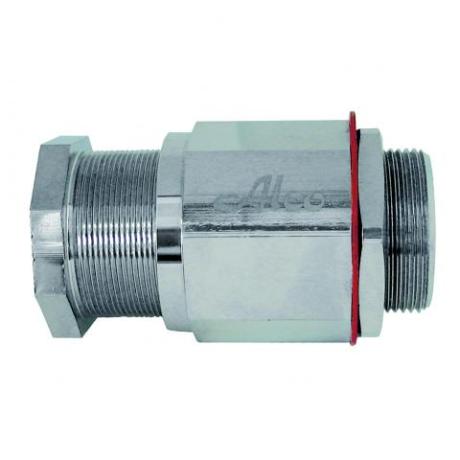

The Cable Gland Brass Hazardous Weatherproof M20 is designed for secure sealing of unarmoured cables with a diameter of 6.5-10mm. With IP66/68 ratings for water and dust ingress protection, it’s perfect for both indoor and outdoor hazardous areas. Certified for use in explosive atmospheres, this durable brass gland ensures long-lasting performance in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Weatherproof M20 | IP66/68 Rated | Ex Certified | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCHUW20A
Alternatively Known As: Brass Hazardous Cable Gland M20, Weatherproof Cable Gland, Ex Certified Cable Gland, Unarmoured Cable Gland M20
Technical Specifications
- Cable Diameter Compatibility: 6.5-10mm
- Thread Size: M20
- Thread Length: 12mm
- Ingress Protection: IP66/68 (30m)
- Hazardous Area Certification: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Locknut: Supplied as standard
- Dimensions (H x L x W): 30mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Suitable for indoor or outdoor use
- Provides a secure seal on cable sheath
- Certified for hazardous areas with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC ratings
- IP66/68 rated for water and dust ingress protection (up to 30m)
- Includes locknut as standard
- Comes with IEC Ex and ANZ Ex certification
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with hazardous area equipment and compliance requirements.
Applications
- Indoor and outdoor hazardous area cable sealing
- Industrial environments requiring Ex certified cable glands
- Use with unarmoured cables with diameter 6.5-10mm
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof and corrosion-resistant design extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific terms.
Available Now
The Wattmaster Brass Hazardous Weatherproof M20 Cable Gland is available for immediate purchase, ideal for industrial and hazardous area cable sealing applications.
