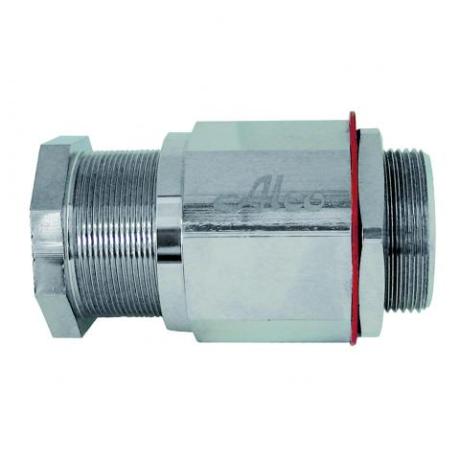

Cable Gland Brass Hazardous Weatherproof M20 | IP66/68 Rated | Unarmoured Cable 4-10mm | by Wattmaster
The Cable Gland Brass Hazardous Weatherproof M20 is designed for unarmoured cables with a diameter of 4-10mm, ensuring reliable sealing in hazardous environments. With an IP66/68 rating for water and dust protection, this durable brass construction is perfect for industrial electrical installations, providing safety and compliance with IEC Ex certifications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Weatherproof M20 | IP66/68 Rated | Unarmoured Cable 4-10mm | by Wattmaster
Brand: Wattmaster
SKU: ALCHUW20SB
Alternatively Known As: Brass Hazardous Cable Gland M20, Weatherproof Cable Gland, Explosion Proof Cable Gland, Hazardous Area Cable Gland
Technical Specifications
- Cable Diameter Range: 4-10mm
- Thread Size: M20
- Thread Length: 12mm
- Ingress Protection: IP66/68 (30m submersion)
- Certification: IEC Ex TSA 13.0002, ANZ Ex 13.3001
- Standards Compliance: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Ex Ratings: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Supplied as standard
- Dimensions (H x L x W): 20mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Suitable for unarmoured cables with diameter 4-10mm
- Brass construction for durability and corrosion resistance
- Weatherproof with IP66/68 rating (30m submersion)
- Certified for hazardous environments: IEC Ex TSA 13.0002, ANZ Ex 13.3001
- Includes locknut for secure installation
- Complies with IEC/AS/NZS 60079 series and IEC 60529 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards and certifications.
Applications
- Indoor and outdoor hazardous area cable sealing
- Industrial electrical installations requiring weatherproof and explosion-proof cable glands
- Use in Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC classified zones
Standards & Compliance
- AS/NZS 60079 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable brass material reduces need for frequent replacements, minimizing waste
- Weatherproof design prevents ingress of water and dust, protecting electrical systems and reducing failure rates
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Hazardous Weatherproof M20 Cable Gland is available for immediate purchase, ideal for hazardous area electrical installations requiring robust and certified cable sealing solutions.
