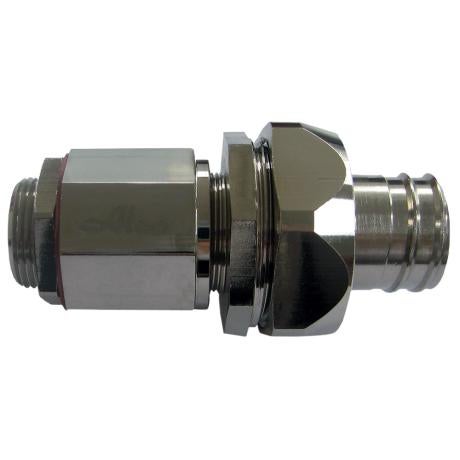

Cable Gland Brass Hazardous Weatherproof M25 | IP66/68 Rated | 14-19mm Cable Diameter | Flexible Conduit Adaptor | by Wattmaster

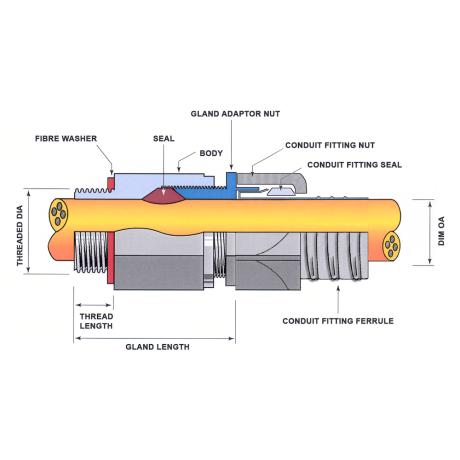

The Cable Gland Brass Hazardous Weatherproof M25 is designed for secure sealing of unarmoured cables with a diameter of 14-19mm. Ideal for hazardous locations, it features an IP66/68 rating for dust and water protection, ensuring durability in corrosive environments. With a TPE seal and included adaptor nut, this product is perfect for both indoor and outdoor applications, providing peace of mind in critical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Weatherproof M25 | IP66/68 Rated | 14-19mm Cable Diameter | Flexible Conduit Adaptor | by Wattmaster
Brand: Wattmaster
SKU: ALCHUW25-LTA32
Alternatively Known As: Brass Cable Gland M25, Hazardous Area Cable Gland, Weatherproof Cable Gland, Unarmoured Cable Gland, Flexible Conduit Adaptor LTA32
Technical Specifications
- Cable Diameter Compatibility: 14-19mm
- Material: Brass
- Ingress Protection: IP66/68 (30m)
- Seal Material: TPE
- Temperature Range: –20°C to +80°C
- Standards: IEC 60529, AS 1939-1990
- Includes locknut and adaptor nut for conduit fitting
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Provides a secure seal on cable sheath
- Adaptor nut compatible with liquid tight metal conduit fittings
- Suitable for hazardous locations
- IP66/68 rated for dust and water ingress protection
- Locknut supplied as standard
- Seal made from TPE for durability
- Temperature range from –20°C to +80°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with hazardous area regulations and proper sealing.
Applications
- Indoor and outdoor corrosive environments
- Hazardous locations requiring secure cable sealing
- Use with liquid tight metal conduit systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof and corrosion-resistant design extends product life
- Helps maintain system integrity preventing environmental contamination
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
Available for immediate purchase, ideal for use in hazardous and corrosive indoor or outdoor environments.
