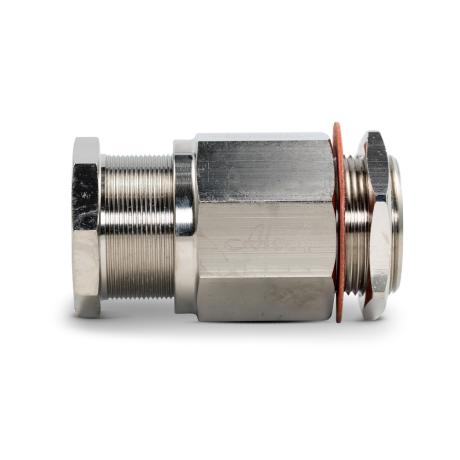

Cable Gland Brass Hazardous Weatherproof M32 | IP66/68 Rated | Unarmoured Cable 19-25mm | by Wattmaster
The Cable Gland Brass Hazardous Weatherproof M32 is designed for unarmoured cables with a diameter of 19-25mm, ensuring reliable sealing in hazardous areas. With a robust brass construction and an IP66/68 rating, it provides exceptional durability and protection against environmental factors. Ideal for industrial electrical installations, this cable gland meets stringent safety standards, making it perfect for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Weatherproof M32 | IP66/68 Rated | Unarmoured Cable 19-25mm | by Wattmaster
Brand: Wattmaster
SKU: ALCHUW32
Alternatively Known As: Brass Hazardous Cable Gland M32, Weatherproof Cable Gland, Explosion Proof Cable Gland, Hazardous Area Cable Gland
Technical Specifications
- Cable Diameter: 19-25mm
- Thread Size: M32
- Thread Length: 15mm
- Ingress Protection: IP66/68 (30m)
- Certifications: IEC Ex TSA 13.0002, ANZ Ex 13.3001
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Ex Ratings: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Dimensions (H x L x W): 40mm x 40mm x 32mm
- Weight: 0.1 kg
Key Features
- Suitable for unarmoured cables with diameter 19-25mm
- Brass construction for durability and corrosion resistance
- Weatherproof with IP66/68 rating (30m)
- Certified for hazardous areas: IEC Ex TSA 13.0002, ANZ Ex 13.3001
- Includes locknut as standard
- Complies with IEC/AS/NZS 60079 series and IEC 60529 standards
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced in hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area cable sealing
- Industrial electrical installations requiring weatherproof and explosion-proof cable glands
- Use in environments requiring Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC protection
Standards & Compliance
- AS/NZS 60079 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable brass material reduces need for frequent replacements, minimizing waste
- Weatherproof design protects electrical systems, reducing risk of environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Brass Hazardous Weatherproof Cable Gland M32 is available for immediate purchase, ideal for industrial and hazardous area electrical installations.
