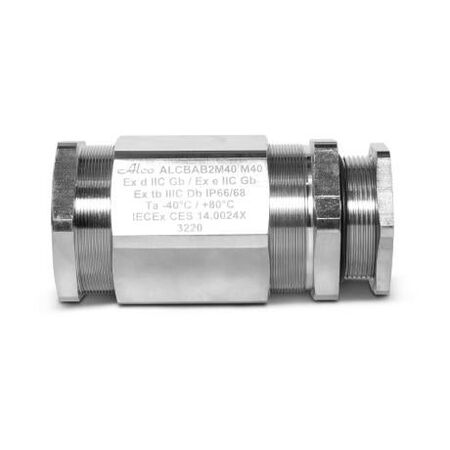

Cable Gland Brass Hazardous Weatherproof M40 | 29-40mm Cable Diameter | Type 2 Gland with Single Seal | by Wattmaster
The Cable Gland Brass Hazardous Weatherproof M40 is designed for reliable sealing of armoured cables with a diameter range of 29-40mm. Ideal for both indoor and outdoor applications, this Type 2 gland features a single seal for effective protection in hazardous environments. With durable brass construction and a locknut included, it ensures secure fitting and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Weatherproof M40 | 29-40mm Cable Diameter | Type 2 Gland with Single Seal | by Wattmaster
Brand: Wattmaster
SKU: ALCBAB2M40
Alternatively Known As: Brass Armoured Cable Gland M40, Hazardous Area Cable Gland, Weatherproof Cable Gland, SWA Cable Gland
Technical Specifications
- Material: Brass
- Cable Diameter Range: 29-40mm
- Thread Length: 16mm
- Type: Type 2 gland with single seal
- Suitable for: Armoured cables
- Locknut: Supplied
- Usage: Indoor and outdoor
- Dimensions (H x L x W): 40mm x 50mm x 40mm
- Weight: 0.15 kg
Key Features
- Hazardous area weatherproof design
- Suitable for armoured cables with diameter 29-40mm
- Type 2 gland with single seal for effective sealing
- Provides seal on cable sheath and bedding
- Clamps steel wire armour (SWA) securely
- Includes locknut for secure fitting
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper sealing in hazardous areas.
Applications
- Industrial hazardous area cable installations
- Indoor and outdoor armoured cable sealing
- Electrical and instrumentation cable protection in hazardous environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements, minimizing waste
- Weatherproof design protects cables, reducing environmental contamination risks
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Brass Hazardous Weatherproof M40 Armoured Cable Gland is available for immediate purchase, ideal for hazardous area cable sealing applications.
