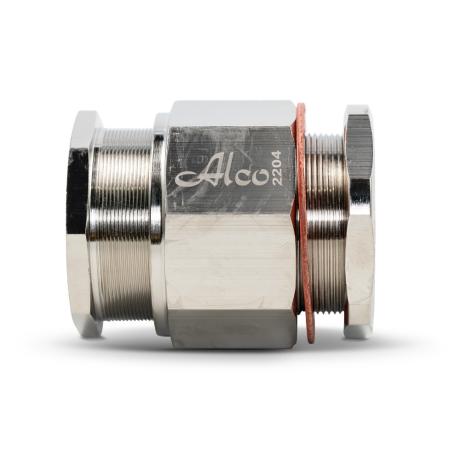

Cable Gland Brass Hazardous Weatherproof M50 | IP66/68 Rated | 31-42mm Cable Diameter | by Wattmaster
The Cable Gland Brass Hazardous Weatherproof M50 is designed for unarmoured cables with a diameter of 31-42mm, ensuring a secure and weatherproof seal. With an IP66/68 rating, it's perfect for hazardous area electrical installations, providing reliable protection against environmental factors. Certified for explosive atmospheres, this gland includes a locknut for easy installation, making it ideal for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Weatherproof M50 | IP66/68 Rated | 31-42mm Cable Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCHUW50
Alternatively Known As: Brass Hazardous Cable Gland M50, Weatherproof Cable Gland, Ex Rated Cable Gland, Hazardous Area Cable Gland
Technical Specifications
- Cable Diameter Range: 31-42mm
- Thread Length: 20mm
- Material: Brass
- Ingress Protection: IP66/68 (30m)
- Certification: IEC Ex TSA 13.0002, ANZ Ex 13.3001
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Ex Ratings: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Supplied as standard
- Dimensions (H x L x W): 70mm x 40mm x 70mm
- Weight: 0.3 kg
Key Features
- Suitable for unarmoured cables with diameter 31-42mm
- Weatherproof design rated IP66/68 (30m)
- Certified for hazardous locations: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Includes locknut for secure installation
- Complies with IEC/AS/NZS 60079 series and IEC 60529 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Industrial hazardous area cable sealing
- Indoor and outdoor electrical installations
- Use in explosive atmospheres requiring Ex certification
Standards & Compliance
- AS/NZS 60079 – Electrical Equipment for Explosive Atmospheres
- AS/NZS 60529 – Degrees of Protection by Enclosures (IP Code)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof sealing prevents environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass Hazardous Weatherproof Cable Gland M50 is available for immediate purchase, ideal for hazardous area electrical installations requiring robust and certified cable sealing.
