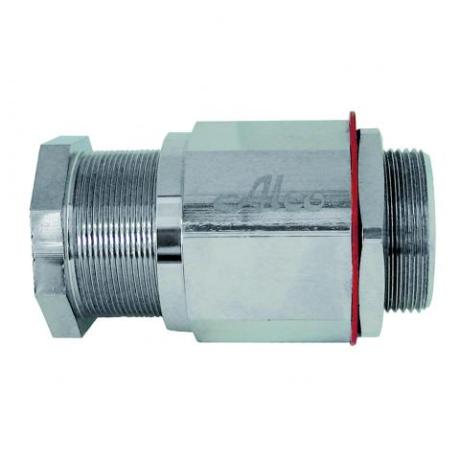

Cable Gland Brass Hazardous Weatherproof M63 | IP66/68 Rated | Ex Certified | @Each by Wattmaster

BRAND: Wattmaster
SKU: ALCHUW63
$492.60 List price: $596.20
+ −
30 Days Return Delivery Options
The Cable Gland Brass Hazardous Weatherproof M63 is designed for secure sealing of unarmoured cables with a diameter of 42-53mm. With IP66/68 ratings for water and dust protection, it’s perfect for both indoor and outdoor hazardous areas. Certified for Ex db I/IIC, Ex eb I/IIC, and Ex ta IIIC, this durable brass gland ensures compliance and safety in industrial environments.

Product Name/Title: Cable Gland Brass Hazardous Weatherproof M63 | IP66/68 Rated | Ex Certified | @Each by Wattmaster

Brand: Wattmaster

SKU: ALCHUW63

Alternatively Known As: Brass Hazardous Cable Gland M63, Weatherproof Cable Gland, Ex Certified Cable Gland, Unarmoured Cable Gland

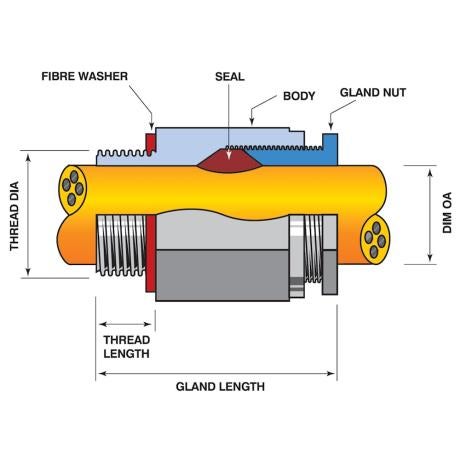

Technical Specifications
  • Cable Diameter Range: 42-53mm
  • Thread Length: 25mm
  • Material: Brass
  • Ingress Protection: IP66/68 (30m submersion)
  • Hazardous Area Certification: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
  • Certification Numbers: IEC Ex TSA 13.0002, ANZ Ex 13.3001
  • Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
  • Locknut: Supplied as standard
  • Dimensions (H x L x W): 63mm x 25mm x 63mm
  • Weight: 0.5 kg
Key Features
  • Suitable for indoor or outdoor use
  • Provides a secure seal on cable sheath
  • Certified for hazardous areas with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC ratings
  • IP66/68 rated for water and dust ingress protection (30m submersion)
  • Includes locknut as standard
  • Complies with IEC Ex and ANZ Ex certifications
Professional Installation Requirements
  • Installation should be performed by a qualified professional familiar with hazardous area electrical installations to ensure compliance and safety.
Applications
  • Indoor and outdoor hazardous area cable sealing
  • Industrial environments requiring Ex certified cable glands
  • Use with unarmoured cables with diameter 42-53mm
Standards & Compliance
  • AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
  • Durable brass construction reduces need for frequent replacements
  • Weatherproof and corrosion-resistant design extends product life
Warranty Information

Standard manufacturer warranty applies; please refer to Wattmaster for specific terms.

Available Now

The Wattmaster Brass Hazardous Weatherproof Cable Gland M63 is available for immediate purchase, ideal for hazardous area cable sealing applications.
