Trade Discount 17%

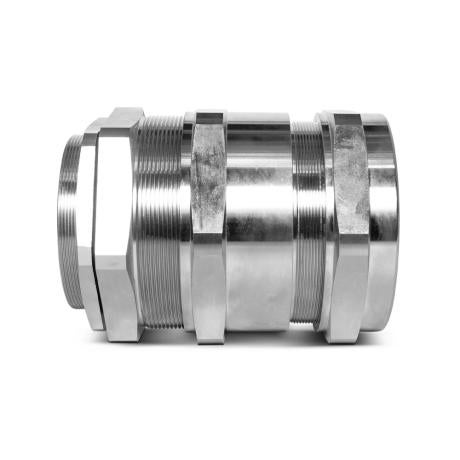

Cable Gland Brass Hazardous Weatherproof M90 | 63-80mm Diameter | Single Seal Design | Armoured Cable Compatible | @Each by Wattmaster
The Cable Gland Brass Hazardous Weatherproof M90 is designed for armoured cables with a diameter range of 63-80mm, ensuring effective sealing in hazardous areas. Built with durable brass and a single seal design, it provides reliable weatherproof protection for both indoor and outdoor electrical installations, making it ideal for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Weatherproof M90 | 63-80mm Diameter | Single Seal Design | Armoured Cable Compatible | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCBABM90
Alternatively Known As: Brass Armoured Cable Gland M90, Hazardous Area Cable Gland, Weatherproof Cable Gland, SWA Cable Gland
Technical Specifications
- Material: Brass
- Cable Diameter Range: 63-80mm
- Thread Length: 20mm
- Type: Hazardous area weatherproof gland
- Seal Type: Single seal
- Locknut: Supplied
- Suitable for armoured cables
- Dimensions (H x L x W): 40mm x 60mm x 90mm
- Weight: 0.3 kg
Key Features
- Suitable for armoured cables with diameter 63-80mm
- Hazardous area weatherproof design
- Type 1 gland with single seal for effective sealing
- Provides seal on cable sheath and bedding
- Clamps steel wire armour (SWA) securely
- Includes locknut for secure installation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with safety standards and proper sealing.
Applications
- Indoor and outdoor electrical installations
- Armoured cable connections in hazardous areas
- Industrial and commercial electrical wiring requiring weatherproof sealing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof design prevents environmental damage and cable degradation
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The Wattmaster Brass Hazardous Weatherproof M90 Armoured Cable Gland is available for immediate purchase, ideal for hazardous area electrical installations requiring robust cable sealing.
