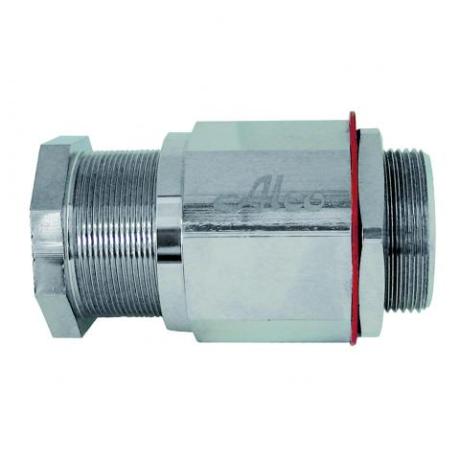

Cable Gland Brass M25 | IP66/68 Weatherproof | Unarmoured Cable 14-19mm | by Wattmaster
The Cable Gland Brass M25 is designed for unarmoured cables with a diameter of 14-19mm, providing exceptional durability and corrosion resistance. With an IP66/68 weatherproof rating, it's perfect for hazardous area electrical installations, ensuring safety and compliance in both indoor and outdoor environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass M25 | IP66/68 Weatherproof | Unarmoured Cable 14-19mm | by Wattmaster
Brand: Wattmaster
SKU: ALCHUW25
Alternatively Known As: Brass Cable Gland M25, Hazardous Area Cable Gland, Weatherproof Cable Gland, Ex Cable Gland M25
Technical Specifications
- Cable Diameter Range: 14-19mm
- Thread Size: M25
- Thread Length: 12mm
- Ingress Protection: IP66/68 (30m)
- Certification: IEC Ex TSA 13.0002, ANZ Ex 13.3001
- Standards Compliance: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Ex Ratings: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Supplied as standard
- Dimensions (H x L x W): 25mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Suitable for unarmoured cables with diameter 14-19mm
- Brass construction for durability and corrosion resistance
- Weatherproof with IP66/68 rating (30m)
- Certified for hazardous areas: IEC Ex TSA 13.0002, ANZ Ex 13.3001
- Includes locknut as standard
- Complies with IEC/AS/NZS 60079 series and IEC 60529 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area cable sealing
- Industrial electrical installations requiring weatherproof and explosion-proof cable glands
- Use in Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC classified environments
Standards & Compliance
- AS/NZS 60079 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof design prevents environmental damage and cable degradation
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass Hazardous Weatherproof M25 Cable Gland is available for immediate purchase, ideal for industrial and hazardous area electrical installations.
