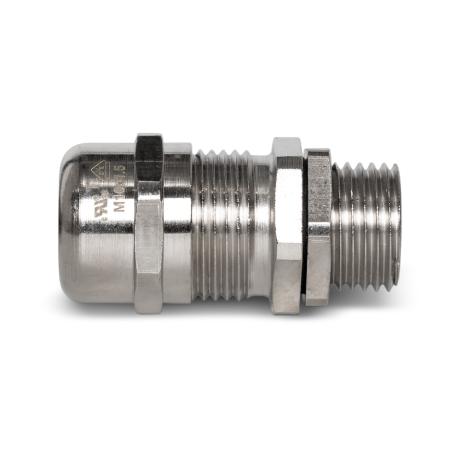

Cable Gland Brass Nickel Plated M16 | 5-10mm Cable Diameter | 12mm Thread Length | by Wattmaster
The Cable Gland Brass Nickel Plated M16 is designed for secure sealing of unarmoured cables with a diameter of 5-10mm. Ideal for both indoor and outdoor electrical installations, this gland features a durable brass construction and neoprene seal, ensuring long-lasting performance and compliance with AS/NZS 3000 standards. Perfect for industrial and commercial wiring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Nickel Plated M16 | 5-10mm Cable Diameter | 12mm Thread Length | by Wattmaster
Brand: Wattmaster
SKU: ALCBRGM16L
Alternatively Known As: Brass Cable Gland M16, Nickel Plated Cable Gland, Unarmoured Cable Gland M16
Technical Specifications
- Cable Diameter: 5-10mm
- Thread Length: 12mm
- Material: Brass, nickel plated
- Seal Material: Neoprene
- O Ring Material: NBR
- Temperature Range: –40°C to +100°C
- Locknut included
- Dimensions (H x L x W): 12mm x 16mm x 16mm
- Weight: 0.1 kg
Key Features
- General purpose glands for unarmoured cable
- Provides seal on cable sheath
- Locknut supplied as standard
- Made from brass, nickel plated
- Suitable for indoor or outdoor use
- Seal made of neoprene
- O Ring made of NBR
- Temperature range from –40°C to +100°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Electrical installations requiring secure cable entry
- Indoor and outdoor unarmoured cable sealing
- Industrial and commercial electrical wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Nickel plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
Available for immediate purchase, ideal for secure cable sealing in electrical installations.
