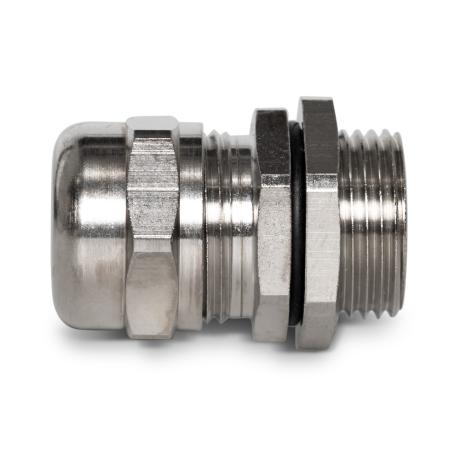

Cable Gland Brass Nickel Plated M20 | 6-12mm Cable Diameter | Weatherproof Seal | by Wattmaster
The Cable Gland Brass Nickel Plated M20 is designed for unarmoured cables with a diameter of 6-12mm, providing a secure and weatherproof seal. Ideal for both indoor and outdoor electrical installations, this gland features durable brass construction and a neoprene seal, ensuring long-lasting performance in industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Nickel Plated M20 | 6-12mm Cable Diameter | Weatherproof Seal | by Wattmaster
Brand: Wattmaster
SKU: ALCBRGM20
Alternatively Known As: Brass Cable Gland M20, Nickel Plated Cable Gland, Unarmoured Cable Gland M20, Weatherproof Cable Gland
Technical Specifications
- Cable Diameter: 6-12mm
- Thread Size: M20
- Thread Length: 12mm
- Material: Brass with nickel plating
- Seal Material: Neoprene
- O Ring Material: NBR
- Temperature Range: –40°C to +100°C
- Locknut included
- Dimensions (H x L x W): 20mm x 32mm x 20mm
- Weight: 0.1 kg
Key Features
- General purpose glands for unarmoured cable
- Provides seal on cable sheath
- Locknut supplied as standard
- Made from brass, nickel plated
- Seal made of Neoprene
- O Ring made of NBR
- Temperature range from –40°C to +100°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical safety standards.
Applications
- Indoor and outdoor cable sealing for unarmoured cables
- Electrical installations requiring secure cable entry
- Industrial and commercial wiring protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Nickel plating provides corrosion resistance, extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Nickel Plated M20 Cable Gland is available for immediate purchase, ideal for secure and weatherproof cable installations in residential, commercial, and industrial settings.
