Cable Gland Brass Weatherproof M105 | IP66/68 Rated | Nickel Plated | @Each by Wattmaster

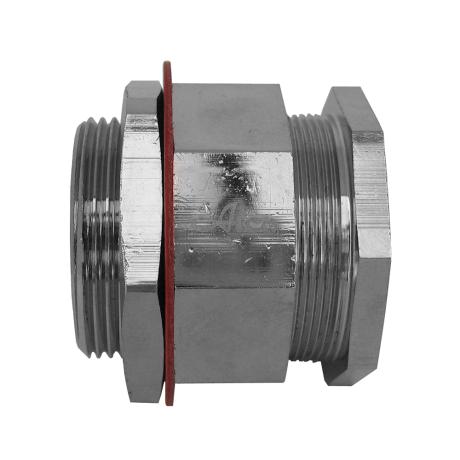

The Cable Gland Brass Weatherproof M105 is designed for unarmoured cables with a diameter of 75-89mm, providing a secure seal and IP66/68 water ingress protection. Ideal for both indoor and outdoor electrical installations, this durable gland features brass construction with nickel plating for enhanced corrosion resistance, ensuring long-lasting performance in industrial and commercial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M105 | IP66/68 Rated | Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCUW105
Alternatively Known As: Brass Cable Gland M105, Weatherproof Cable Gland, Unarmoured Cable Gland, Nickel Plated Cable Gland
Technical Specifications
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Cable Diameter Range: 75-89mm
- Ingress Protection: IP66/68 (30m)
- Temperature Range: -20°C to +80°C
- Locknut: Supplied as standard
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.3 kg
Key Features
- Suitable for unarmoured cables with diameter 75-89mm
- Brass construction with nickel plating for corrosion resistance
- Provides a secure seal on cable sheath
- IP66/68 rated for water ingress protection up to 30 meters
- Includes locknut as standard
- Temperature range from -20°C to +80°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor cable installations
- Sealing and protecting unarmoured cables in industrial and commercial environments
- Use in electrical wiring systems requiring weatherproof cable glands
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS 1939-1990
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design minimizes cable damage and environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M105 is available for immediate purchase, ideal for securing and protecting unarmoured cables in both indoor and outdoor electrical installations.
