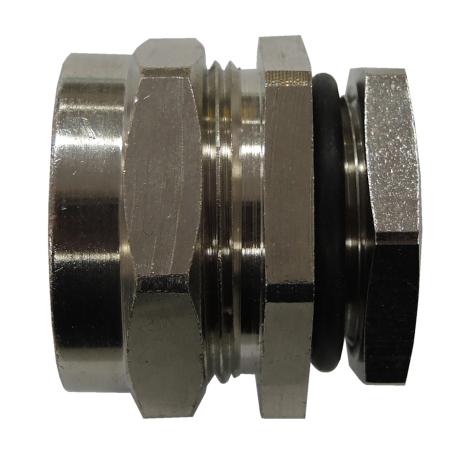

Cable Gland Brass Weatherproof M110 | IP66/68 Rated | 88-100mm Diameter | by Wattmaster
The Cable Gland Brass Weatherproof M110 is designed for unarmoured cables with a diameter of 88-100mm, providing robust sealing and protection against water ingress with an IP66/68 rating. Ideal for both indoor and outdoor industrial and commercial electrical installations, this durable brass gland ensures secure fitting and compliance with IEC62444 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M110 | IP66/68 Rated | 88-100mm Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCUA110
Alternatively Known As: Brass Cable Gland M110, Weatherproof Cable Gland for Unarmoured Cable, IP68 Cable Gland, Large Diameter Cable Gland
Technical Specifications
- Cable Diameter Range: 88-100mm
- Material: Brass
- Ingress Protection: IP66/68 (30m water depth)
- Standards Compliance: IEC62444
- Protection Types: Anchorage CAT B, Impact CAT 8
- Locknut: Supplied as standard
- Dimensions (H x L x W): 110mm x 110mm x 110mm
- Weight: 1.2 kg
Key Features
- Suitable for unarmoured cables with diameter 88-100mm
- Weatherproof design with IP66/68 rating for water ingress protection up to 30m
- Clamps and seals on the outer cable surface to ensure secure fitting
- Includes locknut as standard for easy installation
- Complies with IEC62444 standard
- Protection types Anchorage CAT B and Impact CAT 8 compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical safety standards.
Applications
- Indoor and outdoor cable sealing and protection
- Industrial and commercial electrical installations
- Weatherproof cable entry points for unarmoured cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements, minimizing waste
- Weatherproof sealing prevents water ingress, reducing risk of electrical faults and environmental hazards
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M110 for unarmoured cables 88-100mm is available for immediate purchase, ideal for industrial and commercial electrical installations requiring robust weatherproof cable sealing.
