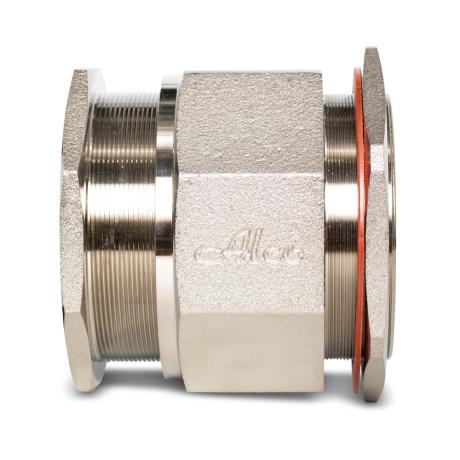

Cable Gland Brass Weatherproof M120 | IP66/68 Rated | Nickel Plated | @Each by Wattmaster
The Cable Gland Brass Weatherproof M120 is designed for unarmoured cables with a diameter of 98-105mm, providing a secure seal and exceptional protection against water ingress with an IP66/68 rating. Ideal for both indoor and outdoor electrical installations, this durable gland features brass construction with nickel plating for corrosion resistance, ensuring long-lasting performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M120 | IP66/68 Rated | Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCUW120B
Alternatively Known As: Brass Cable Gland M120, Weatherproof Cable Gland, Unarmoured Cable Gland, Nickel Plated Cable Gland
Technical Specifications
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Cable Diameter Suitability: 98-105mm
- Ingress Protection: IP66/68 (30m water depth)
- Temperature Range: –20°C to +80°C
- Locknut: Supplied as standard
- Dimensions (H x L x W): 120mm x 120mm x 120mm
- Weight: 1.2 kg
Key Features
- Suitable for unarmoured cables with diameter 98-105mm
- Provides a secure seal on cable sheath
- Weatherproof with IP66/68 rating (30m water ingress protection)
- Brass construction with nickel plating for corrosion resistance
- Includes locknut as standard
- Temperature range from –20°C to +80°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical safety standards.
Applications
- Indoor and outdoor cable sealing
- Industrial and commercial electrical installations
- Weatherproof cable entry points
Standards & Compliance
- Complies with AS 1939-1990
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating reduce the need for frequent replacements, minimizing waste.
- Weatherproof design protects cables from environmental damage, extending cable life.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M120 is available for immediate purchase, ideal for securing and protecting unarmoured cables in both indoor and outdoor electrical installations.
