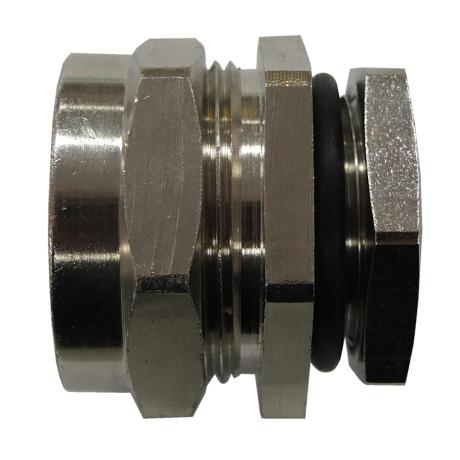

Cable Gland Brass Weatherproof M16 | IP66/68 Protection | 5-12mm Cable Diameter | by Wattmaster
The Cable Gland Brass Weatherproof M16 is designed for unarmoured cables with a diameter of 5-12mm, providing robust IP66/68 protection for both indoor and outdoor installations. Ideal for electrical wiring that requires secure weatherproof sealing, this gland features durable brass construction and includes a locknut for easy installation, ensuring compliance with IEC62444 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M16 | IP66/68 Protection | 5-12mm Cable Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCUA16
Alternatively Known As: Brass Cable Gland M16, Weatherproof Cable Gland, Unarmoured Cable Gland, IP68 Cable Gland
Technical Specifications
- Cable Diameter Compatibility: 5-12mm
- Material: Brass
- Protection Rating: IP66/68 (30m immersion)
- Standards Compliance: IEC62444
- Anchorage Protection: CAT B
- Impact Protection: CAT 8
- Includes Locknut: Yes
- Dimensions (H x L x W): 30mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Suitable for unarmoured cables with diameter 5-12mm
- Weatherproof design with IP66/68 protection up to 30m immersion
- Clamps and seals on the outer cable surface for secure fitting
- Includes locknut as standard for easy installation
- Complies with IEC62444 standard
- Meets Anchorage CAT B and Impact CAT 8 protection types
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical safety standards.
Applications
- Indoor and outdoor cable installations
- Electrical wiring requiring weatherproof sealing
- Industrial and commercial cable management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements, minimizing waste
- Weatherproof sealing prevents water ingress, reducing risk of electrical faults and environmental hazards
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M16 for unarmoured cables 5-12mm is available for immediate purchase, ideal for secure and weatherproof cable installations in residential, commercial, and industrial settings.
