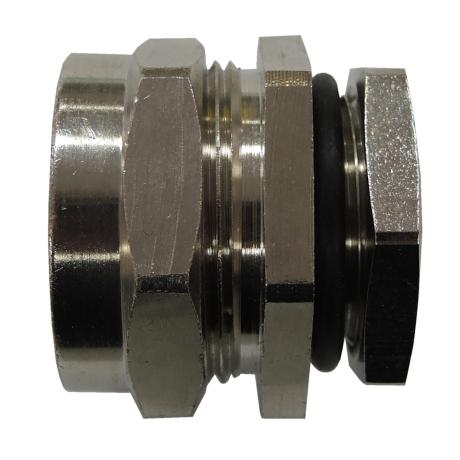

Cable Gland Brass Weatherproof M20 | IP66/68 Rated | 5-12mm Cable Diameter | by Wattmaster
The Cable Gland Brass Weatherproof M20 is designed for unarmoured cables with a diameter of 5-12mm, providing exceptional weatherproof sealing with an IP66/68 rating for up to 30m immersion. Ideal for both indoor and outdoor electrical installations, this durable brass gland ensures secure fitting and compliance with IEC62444 standards, making it perfect for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M20 | IP66/68 Rated | 5-12mm Cable Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCUA20A
Alternatively Known As: Brass Cable Gland M20, Weatherproof Cable Gland, Unarmoured Cable Gland, IP68 Cable Gland
Technical Specifications
- Cable Diameter Compatibility: 5-12mm
- Material: Brass
- Protection Rating: IP66/68 (30m immersion)
- Standards Compliance: IEC62444
- Anchorage Category: CAT B
- Impact Category: CAT 8
- Includes Locknut: Yes
- Dimensions (H x L x W): 40mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Suitable for unarmoured cables with diameter 5-12mm
- Weatherproof design with IP66/68 protection up to 30m immersion
- Clamps and seals on the outer cable surface for secure fitting
- Includes locknut as standard for easy installation
- Complies with IEC62444 standard
- Meets Anchorage CAT B and Impact CAT 8 protection types
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor cable installations
- Electrical wiring requiring weatherproof sealing
- Industrial and commercial cable management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof sealing prevents environmental damage and cable degradation
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M20 for unarmoured cables 5-12mm is available for immediate purchase, ideal for secure and weatherproof cable installations in residential, commercial, and industrial settings.
