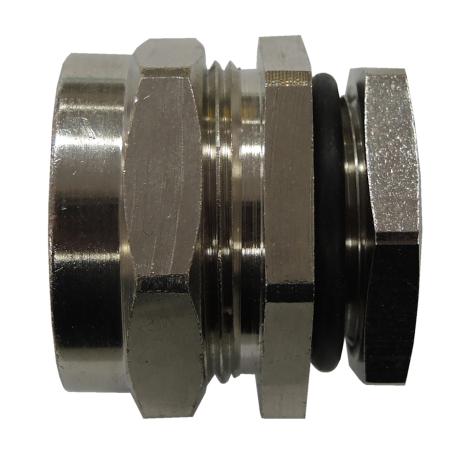

Cable Gland Brass Weatherproof M25 | IP66/68 Rated | 14.5-20.5mm Cable Diameter | by Wattmaster
The Cable Gland Brass Weatherproof M25 is designed for unarmoured cables with a diameter range of 14.5-20.5mm, ensuring a secure and weatherproof seal. With an IP66/68 rating, it provides high protection against water ingress, making it ideal for both indoor and outdoor installations in commercial and industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M25 | IP66/68 Rated | 14.5-20.5mm Cable Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCUA25
Alternatively Known As: Brass Cable Gland M25, Weatherproof Cable Gland, Unarmoured Cable Gland, IP68 Cable Gland
Technical Specifications
- Cable Diameter Range: 14.5-20.5mm
- Material: Brass
- Protection Rating: IP66/68 (30m water submersion)
- Standards Compliance: IEC62444
- Anchorage Protection: CAT B
- Impact Protection: CAT 8
- Locknut Included: Yes
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Suitable for indoor or outdoor use
- Clamps and seals on the outer cable surface to prevent ingress
- Locknut supplied as standard for secure fitting
- High degree of protection with IP66/68 rating up to 30m water depth
- Complies with IEC62444 standard
- Protection types Anchorage CAT B and Impact CAT 8 compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical safety standards.
Applications
- Indoor and outdoor cable installations requiring weatherproof sealing
- Electrical wiring protection in industrial and commercial environments
- Use with unarmoured cables with diameters between 14.5mm and 20.5mm
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements, minimizing waste
- Weatherproof design protects cables from environmental damage, extending cable life
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M25 for unarmoured cables is available for immediate purchase, ideal for secure and weatherproof cable installations in residential, commercial, and industrial settings.
