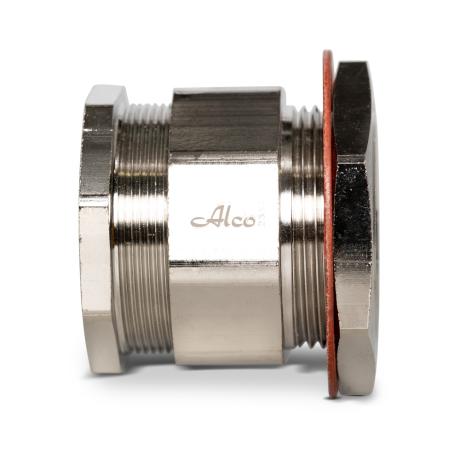

Cable Gland Brass Weatherproof M32 | IP66/68 Rated | 20-26.5mm Cable Diameter | Nickel Plated | @Each by Wattmaster
The Cable Gland Brass Weatherproof M32 is designed for unarmoured cables with a diameter of 20-26.5mm, providing a secure seal and IP66/68 water ingress protection. Ideal for both indoor and outdoor electrical installations, this durable gland features brass construction with nickel plating for enhanced corrosion resistance, ensuring long-lasting performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M32 | IP66/68 Rated | 20-26.5mm Cable Diameter | Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCUW32
Alternatively Known As: Brass Cable Gland M32, Weatherproof Cable Gland, Unarmoured Cable Gland, Nickel Plated Cable Gland
Technical Specifications
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Cable Diameter Range: 20-26.5mm
- Ingress Protection: IP66/68 (30m)
- Temperature Range: –20°C to +80°C
- Locknut: Supplied as standard
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- Suitable for unarmoured cables with diameter 20-26.5mm
- Brass construction with nickel plating for corrosion resistance
- Provides a secure seal on cable sheath
- IP66/68 rated for water ingress protection up to 30 meters
- Includes locknut as standard
- Temperature range from –20°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical safety standards.
Applications
- Indoor and outdoor cable sealing
- Electrical installations requiring weatherproof cable entry
- Industrial and commercial electrical wiring
Standards & Compliance
- Complies with AS 1939-1990 for cable glands
Environmental Benefits
- Durable brass and nickel plating extend product life, reducing waste
- Weatherproof design minimizes need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M32 is available for immediate purchase, ideal for securing unarmoured cables in both indoor and outdoor electrical installations.
