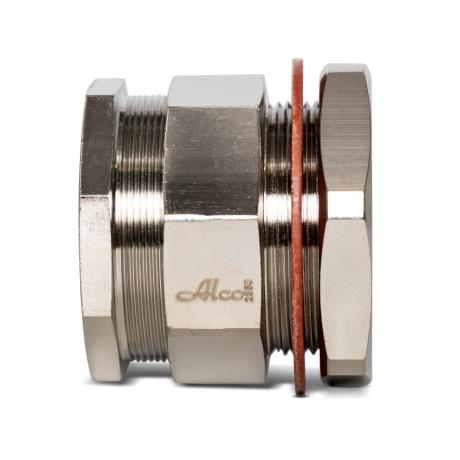

Cable Gland Brass Weatherproof M40 | IP66/68 Rated | TPE Seal | @Each by Wattmaster
The Cable Gland Brass Weatherproof M40 is designed for unarmoured cables with a diameter of 26-33.5mm, featuring a robust IP66/68 rating for reliable outdoor use. Constructed from durable brass with nickel plating, it ensures corrosion resistance and includes a TPE seal for effective protection against water ingress. Ideal for both indoor and outdoor electrical installations, this cable gland guarantees secure and compliant sealing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M40 | IP66/68 Rated | TPE Seal | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCUW40
Alternatively Known As: Brass Cable Gland M40, Weatherproof Cable Gland, Unarmoured Cable Gland, IP68 Cable Gland
Technical Specifications
- Cable Diameter Compatibility: 26-33.5mm
- Material: Brass with nickel plating
- Seal Material: TPE
- Ingress Protection: IP66/68 (30m)
- Temperature Range: –20°C to +80°C
- Locknut: Supplied as standard
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Suitable for unarmoured cables with diameter 26-33.5mm
- Weatherproof design with IP66/68 rating (30m)
- Brass construction with nickel plating for corrosion resistance
- Includes locknut for secure installation
- TPE seal for effective cable sheath protection
- Temperature range from –20°C to +80°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical safety standards.
Applications
- Indoor and outdoor cable sealing
- Electrical installations requiring weatherproof cable entry
- Industrial and commercial wiring protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating reduce the need for frequent replacements, minimizing waste.
- Weatherproof sealing helps prevent water ingress, reducing electrical faults and associated environmental hazards.
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M40 is available for immediate purchase, ideal for securing unarmoured cables in both indoor and outdoor electrical installations.
