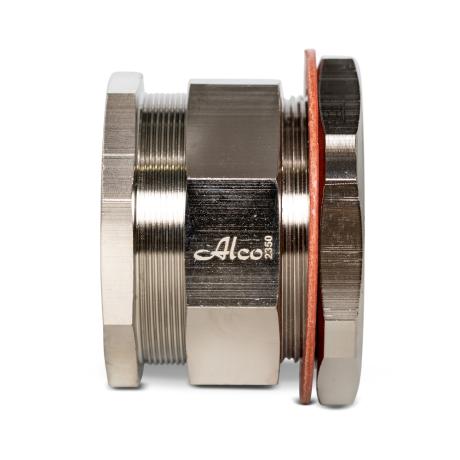

Cable Gland Brass Weatherproof M50 | IP66/68 Rated | 33-42mm Diameter | by Wattmaster
The Cable Gland Brass Weatherproof M50 is designed for unarmoured cables with a diameter of 33-42mm, ensuring reliable sealing in both indoor and outdoor applications. With an IP66/68 rating for water ingress protection and durable brass construction with nickel plating, it offers exceptional corrosion resistance and longevity. Ideal for industrial and commercial wiring, this cable gland includes a locknut for secure installation and a TPE seal for effective cable sheath sealing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M50 | IP66/68 Rated | 33-42mm Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCUW50
Alternatively Known As: Brass Cable Gland M50, Weatherproof Cable Gland, Unarmoured Cable Gland, Nickel Plated Cable Gland
Technical Specifications
- Cable Diameter Compatibility: 33-42mm
- Material: Brass with nickel plating
- Seal Material: TPE
- Ingress Protection: IP66/68 (30m)
- Temperature Range: –20°C to +80°C
- Locknut: Supplied as standard
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 70mm x 70mm x 70mm
- Weight: 0.15 kg
Key Features
- Suitable for unarmoured cables with diameter 33-42mm
- Weatherproof design with IP66/68 rating (30m water ingress protection)
- Brass construction with nickel plating for corrosion resistance
- Includes locknut for secure installation
- TPE seal for effective cable sheath sealing
- Temperature range from –20°C to +80°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor cable sealing
- Electrical installations requiring weatherproof cable glands
- Industrial and commercial wiring protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS 1939-1990
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof sealing reduces risk of electrical faults and environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M50 for unarmoured cables 33-42mm is available for immediate purchase, ideal for both indoor and outdoor electrical cable sealing applications.
