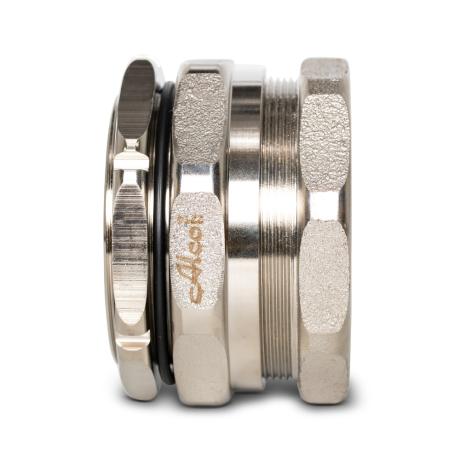

Cable Gland Brass Weatherproof M82 | IP66/68 Rated | Nickel Plated | @Each by Wattmaster
The Cable Gland Brass Weatherproof M82 is designed for unarmoured cables with a diameter of 65-76mm, providing a secure seal to prevent water and dust ingress. With an IP66/68 rating, it’s perfect for both indoor and outdoor applications, ensuring durability and corrosion resistance thanks to its nickel-plated brass construction. Ideal for industrial and commercial electrical installations, this gland operates effectively in temperatures ranging from -20°C to +80°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M82 | IP66/68 Rated | Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCUW82
Alternatively Known As: Brass Cable Gland M82, Weatherproof Cable Gland, Unarmoured Cable Gland, IP68 Cable Gland
Technical Specifications
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Cable Diameter Range: 65-76mm
- Ingress Protection: IP66/68 (30m underwater)
- Temperature Range: –20°C to +80°C
- Locknut: Supplied as standard
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 90mm x 90mm x 90mm
- Weight: 0.5 kg
Key Features
- Provides a secure seal on cable sheath to prevent ingress of water and dust
- Weatherproof with IP66/68 rating (up to 30m underwater)
- Locknut supplied as standard for secure fitting
- Nickel plated brass construction for durability and corrosion resistance
- TPE seal for effective environmental protection
- Operates in temperature range from –20°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper sealing and compliance with safety standards.
Applications
- Indoor and outdoor cable sealing applications
- Suitable for unarmoured cables with diameter 65-76mm
- Industrial and commercial electrical installations requiring weatherproof cable glands
Standards & Compliance
- Complies with AS 1939-1990 for cable glands
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof sealing reduces risk of cable damage and environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M82 for unarmoured cables 65-76mm is available for immediate purchase, ideal for industrial and commercial electrical installations requiring robust weatherproof cable sealing.
