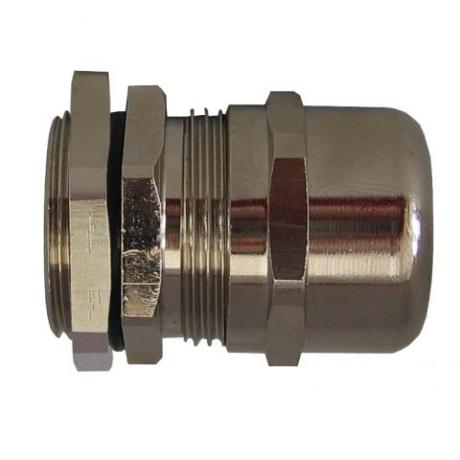

Cable Gland EMC Gen 4 Weatherproof M16 | IP66/68 Ingress Protection | Nickel Plated Brass | @Each by Wattmaster
The Cable Gland EMC Gen 4 Weatherproof M16 is designed for secure cable installations with a diameter of 5-10mm. Featuring IP66/68 ingress protection and a durable nickel-plated brass construction, it ensures reliable performance in both indoor and outdoor environments. Ideal for industrial and commercial applications, this cable gland provides excellent EMC protection and weatherproof sealing, making it a must-have for any electrical installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland EMC Gen 4 Weatherproof M16 | IP66/68 Ingress Protection | Nickel Plated Brass | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMCG416
Alternatively Known As: EMC Cable Gland M16, Weatherproof Cable Gland, Nickel Plated Brass Cable Gland, EMC Gen 4 Cable Gland
Technical Specifications
- Cable Diameter: 5-10mm
- Thread Length: 12mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (5 Bar)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Standards: IEC/EN 62444, IEC 60529
- Locknut: Supplied as standard
- Dimensions (H x L x W): 25mm x 30mm x 16mm
- Weight: 0.1 kg
Key Features
- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 (5 Bar) ingress protection
- Suitable for cable diameters 5-10mm
- Locknut supplied as standard for secure fitting
- Temperature range from –20°C to +100°C, intermittent up to –40°C to +150°C
- Material: Brass with nickel plating for corrosion resistance
- Seal made of chloroprene for durability
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing and screening
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Weatherproof design protects electrical systems, reducing risk of environmental damage
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Cable Gland EMC Gen 4 Weatherproof M16 is available for immediate purchase, ideal for secure and compliant cable installations in industrial and commercial environments.
