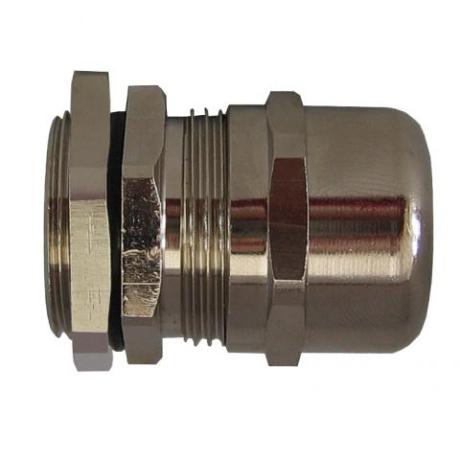

Cable Gland EMC Gen 4 Weatherproof M20 | IP66/68 Rated | Nickel Plated Brass | @Each by Wattmaster
The Cable Gland EMC Gen 4 Weatherproof M20 is designed for reliable sealing in electrical installations, accommodating cable diameters from 7.5-14mm. With an IP66/68 rating, it ensures protection against dust and water, making it ideal for both indoor and outdoor applications. Crafted from nickel-plated brass, this gland offers excellent corrosion resistance and durability, perfect for industrial environments requiring EMC compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland EMC Gen 4 Weatherproof M20 | IP66/68 Rated | Nickel Plated Brass | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMCG420
Alternatively Known As: EMC Cable Gland M20, Weatherproof Cable Gland, Nickel Plated Brass Cable Gland, EMC Gen 4 Cable Gland
Technical Specifications
- Cable Diameter Range: 7.5-14mm
- Thread Size: M20
- Thread Length: 12mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (5 Bar)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Standards Compliance: IEC/EN 62444, IEC 60529
- Locknut Supplied: Yes
- Dimensions (H x L x W): 40mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating (5 Bar pressure resistant)
- Suitable for cable diameters 7.5-14mm
- Material: Brass with nickel plating for corrosion resistance
- Includes locknut as standard
- Seal made of chloroprene for durability
- Wide temperature range from –20°C to +100°C (intermittent –40°C to +150°C)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and EMC compliance.
Applications
- Indoor and outdoor electrical installations
- Cable management and protection in industrial environments
- EMC shielding for cables in communication and power systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Weatherproof design protects cables from environmental damage, extending cable life
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Cable Gland EMC Gen 4 Weatherproof M20 is available for immediate purchase, ideal for industrial and commercial electrical installations requiring EMC protection.
