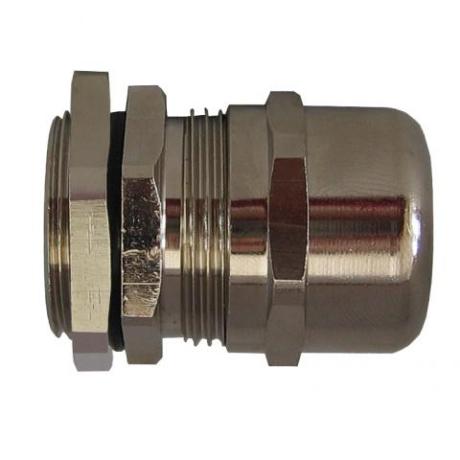

Cable Gland EMC Gen 4 Weatherproof M25 | IP66/68 Ingress Protection | Brass & Nickel Plated | by Wattmaster
The Cable Gland EMC Gen 4 Weatherproof M25 is designed for secure cable installations with a diameter range of 10-18mm. Featuring IP66/68 ingress protection, it ensures reliable sealing and grounding in both indoor and outdoor environments. Made from durable brass with nickel plating, this cable gland is perfect for industrial and commercial applications requiring EMC compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland EMC Gen 4 Weatherproof M25 | IP66/68 Ingress Protection | Brass & Nickel Plated | by Wattmaster
Brand: Wattmaster
SKU: ALCEMCG425
Alternatively Known As: EMC Cable Gland M25, Weatherproof Cable Gland, Nickel Plated Brass Cable Gland, EMC Gen 4 Cable Gland
Technical Specifications
- Cable Diameter Range: 10-18mm
- Thread Length: 12mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (5 Bar)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Standards Compliance: IEC/EN 62444, IEC 60529
- Dimensions (H x L x W): 40mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 (5 Bar) ingress protection
- Suitable for cable diameters 10-18mm
- Locknut supplied as standard
- Temperature range from –20°C to +100°C (intermittent –40°C to +150°C)
- Material: Brass, Nickel Plated for durability and corrosion resistance
- Complies with IEC/EN 62444 and IEC 60529 standards
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and EMC compliance.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing and grounding
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design minimizes environmental damage and cable degradation
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Cable Gland EMC Gen 4 Weatherproof M25 is available for immediate purchase, ideal for secure and compliant cable installations in industrial and commercial environments.
