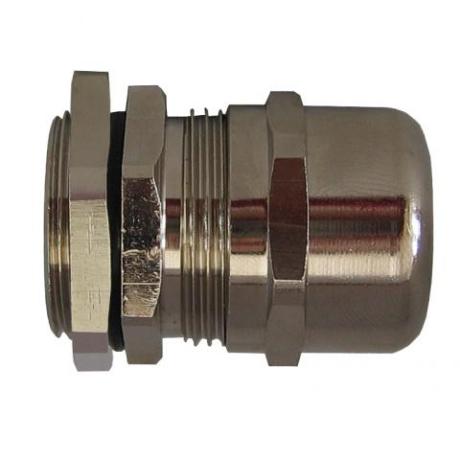

Cable Gland EMC Gen 4 Weatherproof M32 | IP66/68 Rated | Brass & Nickel Plated | @Each by Wattmaster
The Cable Gland EMC Gen 4 Weatherproof M32 is designed for cable diameters of 16-25mm, providing robust EMC protection in both indoor and outdoor installations. With an IP66/68 rating, it ensures reliable sealing against environmental factors, making it ideal for industrial and commercial electrical wiring. Crafted from durable brass with nickel plating, this gland guarantees longevity and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland EMC Gen 4 Weatherproof M32 | IP66/68 Rated | Brass & Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMCG432
Alternatively Known As: EMC Cable Gland M32, Weatherproof Cable Gland, Nickel Plated Cable Gland, Brass EMC Gland
Technical Specifications
- Cable Diameter Range: 16-25mm
- Thread Length: 15mm
- Ingress Protection: IP66/68 (5 Bar)
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Standards Compliance: IEC/EN 62444, IEC 60529
- Locknut: Supplied as standard
- Dimensions (H x L x W): 40mm x 50mm x 32mm
- Weight: 0.1 kg
Key Features
- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 (5 Bar) ingress protection
- Suitable for cable diameters 16-25mm
- Locknut supplied as standard
- Temperature range from –20°C to +100°C, intermittent –40°C to +150°C
- Material: Brass, Nickel Plated for durability and corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing and screening
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design minimizes environmental damage and maintenance needs
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Cable Gland EMC Gen 4 Weatherproof M32 is available for immediate purchase, ideal for industrial and commercial electrical cable installations requiring EMC protection.
