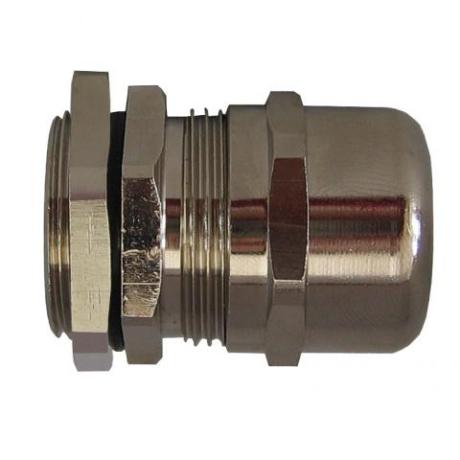

Cable Gland EMC Gen 4 Weatherproof M40 | IP66/68 Ingress Protection | Nickel Plated Brass | @Each by Wattmaster
The Cable Gland EMC Gen 4 Weatherproof M40 is designed for secure cable installations with a diameter range of 22-32mm. Featuring IP66/68 ingress protection and a durable nickel-plated brass construction, it ensures effective sealing and grounding in both indoor and outdoor environments. Ideal for industrial and commercial applications, this cable gland guarantees compliance with EMC standards and provides long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland EMC Gen 4 Weatherproof M40 | IP66/68 Ingress Protection | Nickel Plated Brass | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMCG440
Alternatively Known As: EMC Cable Gland M40, Weatherproof Cable Gland, Nickel Plated Brass Cable Gland, EMC Gen 4 Cable Gland
Technical Specifications
- Cable Diameter Range: 22-32mm
- Thread Length: 15mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (5 Bar)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Standards Compliance: IEC/EN 62444, IEC 60529
- Locknut: Supplied as standard
- Dimensions (H x L x W): 40mm x 50mm x 40mm
- Weight: 0.15 kg
Key Features
- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 (5 Bar) ingress protection
- Suitable for cable diameters 22-32mm
- Locknut supplied as standard for secure fitting
- Temperature range from –20°C to +100°C (intermittent –40°C to +150°C)
- Material made of brass with nickel plating for durability
- Seal made of chloroprene for effective sealing
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and EMC compliance.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing and grounding
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements, minimizing waste
- Weatherproof design prevents environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Cable Gland EMC Gen 4 Weatherproof M40 is available for immediate purchase, ideal for secure and compliant cable installations in industrial and commercial settings.
