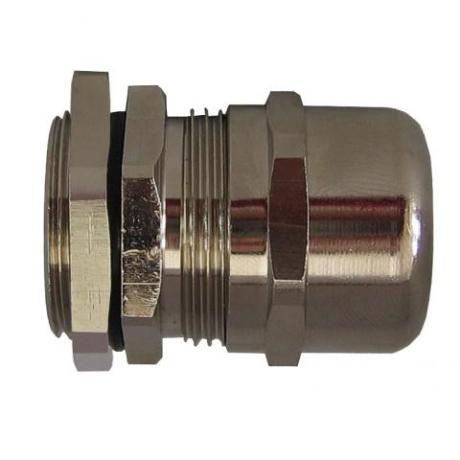

Cable Gland EMC Gen 4 Weatherproof M63 | IP66/68 Ingress Protection | Nickel Plated Brass | @Each by Wattmaster
The Cable Gland EMC Gen 4 Weatherproof M63 is designed for cable diameters of 37-53mm, providing robust EMC protection for both indoor and outdoor electrical installations. With an IP66/68 rating, it ensures superior weatherproofing and durability, making it ideal for industrial and commercial applications. Crafted from nickel-plated brass, this gland offers excellent corrosion resistance and a temperature range of –20°C to +100°C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland EMC Gen 4 Weatherproof M63 | IP66/68 Ingress Protection | Nickel Plated Brass | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMCG463L
Alternatively Known As: EMC Cable Gland M63, Weatherproof Cable Gland, Nickel Plated Brass Cable Gland, EMC Gen 4 Cable Gland
Technical Specifications
- Cable Diameter Range: 37-53mm
- Thread Length: 10mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (5 Bar)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Standards Compliance: IEC/EN 62444, IEC 60529
- Range: EMC16-EMC63L
- Dimensions (H x L x W): 70mm x 40mm x 70mm
- Weight: 0.3 kg
Key Features
- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 (5 Bar) ingress protection
- Suitable for cable diameters 37-53mm
- Locknut supplied as standard for secure fitting
- Temperature range from –20°C to +100°C, intermittent –40°C to +150°C
- Material: Brass with nickel plating for corrosion resistance
- Seal made of chloroprene for durability
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor electrical installations requiring EMC cable protection
- Industrial and commercial cable management systems
- Environments needing high ingress protection and EMC compliance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Weatherproof design protects electrical systems, reducing risk of environmental damage
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Cable Gland EMC Gen 4 Weatherproof M63 is available for immediate purchase, ideal for industrial and commercial electrical installations requiring EMC protection.
