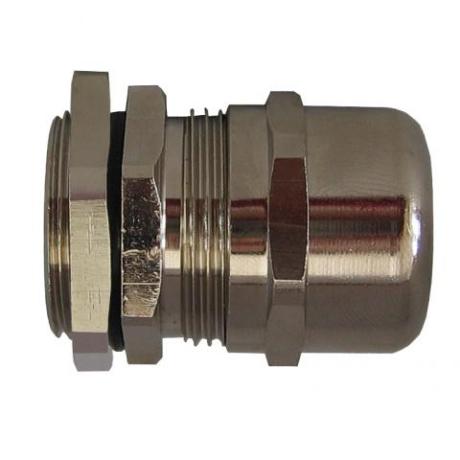

Cable Gland EMC Gen 4 Weatherproof M63 | IP66/68 Rated | Nickel Plated Brass | @Each by Wattmaster
The Cable Gland EMC Gen 4 Weatherproof M63 is designed for reliable indoor and outdoor cable installations, featuring a cable diameter range of 34-44mm and a robust IP66/68 ingress protection rating. Constructed from durable nickel-plated brass, it ensures effective sealing and EMC compliance, making it ideal for industrial and commercial applications requiring weatherproof cable management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland EMC Gen 4 Weatherproof M63 | IP66/68 Rated | Nickel Plated Brass | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMCG463
Alternatively Known As: EMC Cable Gland M63, Weatherproof Cable Gland, Nickel Plated Brass Cable Gland, EMC Gen 4 Cable Gland
Technical Specifications
- Cable Diameter Range: 34-44mm
- Thread Length: 15mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (5 Bar)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Standards Compliance: IEC/EN 62444, IEC 60529
- Range: EMC16-EMC63L
- Dimensions (H x L x W): 70mm x 50mm x 70mm
- Weight: 0.3 kg
Key Features
- Weatherproof design suitable for indoor and outdoor use
- Provides effective seal on cable sheath and ensures contact between screen and earth
- High ingress protection rating of IP66/68 (5 Bar)
- Constructed from durable brass with nickel plating
- Includes locknut as standard for secure fitting
- Seal made from chloroprene for reliable environmental resistance
- Wide operating temperature range from –20°C to +100°C, intermittent up to –40°C to +150°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing and screening
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Enhances cable longevity by protecting against environmental ingress
- Supports EMC compliance reducing electromagnetic interference
- Durable materials reduce need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty terms.
Available Now
The Wattmaster Cable Gland EMC Gen 4 Weatherproof M63 is available for immediate purchase, ideal for industrial and commercial cable management applications requiring EMC protection.
