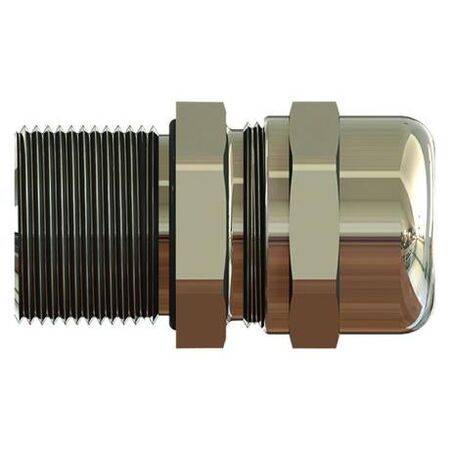

Cable Gland Hazardous Weatherproof M75 | IP66/68 Rated | 60-70mm Diameter | 20mm Thread Length | by Wattmaster
The Cable Gland Hazardous Weatherproof M75 is designed for unarmoured cables with a diameter of 60-70mm, featuring an IP66/68 rating for reliable performance in hazardous environments. Ideal for industrial electrical installations, this gland includes a locknut for secure fitting and is certified for use in explosive atmospheres, ensuring safety and durability in both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Hazardous Weatherproof M75 | IP66/68 Rated | 60-70mm Diameter | 20mm Thread Length | by Wattmaster
Brand: Wattmaster
SKU: ALCBUBM75
Alternatively Known As: Hazardous Area Cable Gland M75, Weatherproof Cable Gland, Explosion Proof Cable Gland
Technical Specifications
- Cable Diameter Range: 60-70mm
- Thread Length: 20mm
- Ingress Protection: IP66/68 (30m)
- Certification: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Supplied as standard
- Suitable for unarmoured cables
- Dimensions (H x L x W): 40mm x 60mm x 75mm
- Weight: 0.5 kg
Key Features
- Weatherproof design with IP66/68 rating (30m)
- Suitable for unarmoured cables with diameter 60-70mm
- Includes locknut as standard for secure fitting
- Certified for Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous areas
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor use in hazardous environments
- Suitable for gas and dust potentially explosive atmospheres
- Industrial electrical installations requiring weatherproof cable sealing
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable weatherproof design reduces need for frequent replacements
- Seals cables to prevent ingress of dust and moisture, protecting electrical systems and reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Cable Gland Hazardous Weatherproof M75 is available for immediate purchase, ideal for industrial and hazardous environment electrical installations.
