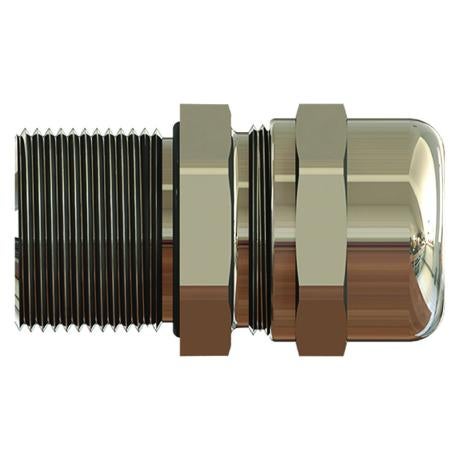

Cable Gland Hazardous Weatherproof M63 | IP66/68 Rated | Unarmoured Cable 35-45mm | by Wattmaster
The Cable Gland Hazardous Weatherproof M63 is designed for unarmoured cables with a diameter of 35-45mm, featuring an IP66/68 rating for reliable weatherproof sealing. Ideal for hazardous area electrical installations, this gland ensures safety in explosive atmospheres with its robust construction and included locknut for secure fitting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Hazardous Weatherproof M63 | IP66/68 Rated | Unarmoured Cable 35-45mm | by Wattmaster
Brand: Wattmaster
SKU: ALCBUBM63S
Alternatively Known As: Hazardous Area Cable Gland M63, Weatherproof Cable Gland M63, Explosion Proof Cable Gland, IP68 Cable Gland
Technical Specifications
- Cable Diameter Range: 35-45mm
- Thread Length: 18mm
- Ingress Protection: IP66/68 (30m immersion)
- Certification: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Supplied as standard
- Suitable for unarmoured cables
- Material: High-quality corrosion resistant materials
- Dimensions (H x L x W): 63mm x 18mm x 63mm
- Weight: 0.5 kg
Key Features
- Suitable for unarmoured cables with diameter 35-45mm
- Weatherproof design with IP66/68 rating (up to 30m immersion)
- Includes locknut as standard for secure fitting
- Certified for use in explosive atmospheres: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
Professional Installation Requirements
- Installation by a qualified electrician or technician trained in hazardous area equipment is required to ensure compliance and safety.
Applications
- Indoor and outdoor hazardous area cable sealing
- Use in gas and dust potentially explosive atmospheres
- Industrial electrical installations requiring weatherproof cable glands
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable weatherproof design reduces need for frequent replacements, minimizing waste
- Seals cables effectively to prevent ingress of dust and moisture, protecting electrical systems and reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Cable Gland Hazardous Weatherproof M63 Unarmoured Cable Diameter 35-45mm is available for immediate purchase, ideal for hazardous area electrical installations requiring robust weatherproof sealing.
