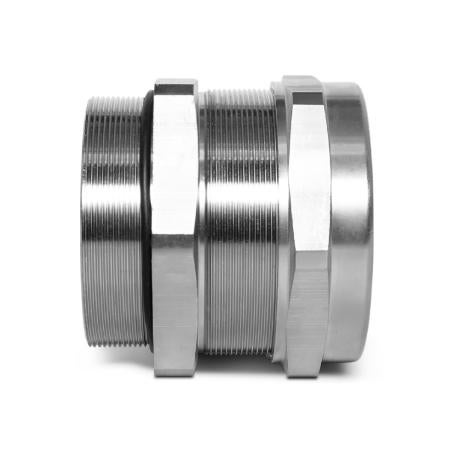

Cable Gland Hazardous Weatherproof M75 | IP66/68 Rated | 40-52mm Diameter | Locknut Included | by Wattmaster

BRAND: Alco
SKU: ALCBUB2M75S
$592.20 List price: $716.70
+ −
30 Days Return Delivery Options
The Cable Gland Hazardous Weatherproof M75 is designed for unarmoured cables with a diameter range of 40-52mm, featuring a robust IP66/68 rating for reliable performance in hazardous environments. Ideal for both indoor and outdoor applications, this gland ensures secure sealing against dust and moisture, enhancing system longevity and safety in explosive atmospheres.

Product Name/Title: Cable Gland Hazardous Weatherproof M75 | IP66/68 Rated | 40-52mm Diameter | Locknut Included | by Wattmaster

Brand: Wattmaster

SKU: ALCBUB2M75S

Alternatively Known As: Hazardous Cable Gland M75, Weatherproof Cable Gland, Ex Cable Gland, Explosion Proof Cable Gland

Technical Specifications
  • Cable Diameter Range: 40-52mm
  • Thread Length: 20mm
  • Ingress Protection: IP66/68 (30m immersion)
  • Suitable for unarmoured cables
  • Standards Compliance: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
  • Locknut: Supplied as standard
  • Dimensions (H x L x W): 40mm x 20mm x 75mm
  • Weight: 0.3 kg
Key Features
  • Suitable for unarmoured cables with diameter 40-52mm
  • Weatherproof design with IP66/68 rating (up to 30m immersion)
  • Includes locknut as standard for secure fitting
  • Certified for use in Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC hazardous atmospheres
Professional Installation Requirements
  • Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
  • Indoor and outdoor cable sealing in hazardous environments
  • Use in gas and dust potentially explosive atmospheres
  • Industrial electrical installations requiring weatherproof cable glands
Standards & Compliance
  • AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
  • Durable weatherproof design reduces need for frequent replacements
  • Seals cables to prevent ingress of dust and moisture, enhancing system longevity
Warranty Information

Standard manufacturer warranty applies; typically 1 year against defects.

Available Now

Available for immediate purchase, ideal for hazardous area electrical installations requiring weatherproof cable sealing.
