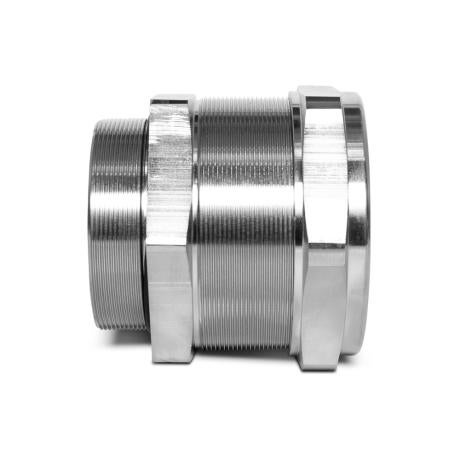

Cable Gland Hazardous Weatherproof M75 | IP66/68 Rated | Unarmoured Cable Diameter 45-60mm | by Wattmaster
The Cable Gland Hazardous Weatherproof M75 is designed for unarmoured cables with a diameter of 45-60mm, ensuring a secure and weatherproof seal. With an IP66/68 rating for up to 30m immersion, it's perfect for indoor and outdoor hazardous locations, providing reliable protection against dust and moisture. Certified for use in explosive atmospheres, this cable gland is essential for industrial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Hazardous Weatherproof M75 | IP66/68 Rated | Unarmoured Cable Diameter 45-60mm | by Wattmaster
Brand: Wattmaster
SKU: ALCBUB2M75
Alternatively Known As: Hazardous Area Cable Gland M75, Weatherproof Cable Gland, Explosion Proof Cable Gland, Unarmoured Cable Gland 45-60mm
Technical Specifications
- Cable Diameter Range: 45-60mm
- Thread Length: 20mm
- Ingress Protection: IP66/68 (30m immersion)
- Standards Compliance: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Supplied as standard
- Suitable for unarmoured cables
- Use: Indoor and outdoor hazardous locations
- Dimensions (H x L x W): 75mm x 40mm x 75mm
- Weight: 0.3 kg
Key Features
- Suitable for unarmoured cables with diameter 45-60mm
- Weatherproof design with IP66/68 rating (up to 30m immersion)
- Includes locknut as standard for secure fitting
- Certified for use in explosive atmospheres: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area cable sealing
- Use in gas and dust potentially explosive atmospheres
- Industrial electrical installations requiring weatherproof cable glands
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable weatherproof design reduces need for frequent replacements
- Seals cables to prevent ingress of dust and moisture, protecting electrical systems and reducing environmental hazards
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Cable Gland Hazardous Weatherproof M75 Unarmoured 45-60mm is available for immediate purchase, ideal for hazardous area electrical installations requiring robust cable sealing.
