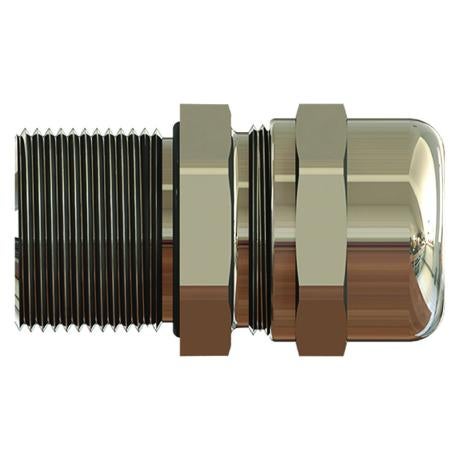

Cable Gland Hazardous Weatherproof M75 | IP66/68 Rated | Unarmoured Cable Diameter 46-62mm | Thread Length 20mm | by Wattmaster
The Cable Gland Hazardous Weatherproof M75 is designed for unarmoured cables with a diameter of 46-62mm, featuring a robust IP66/68 weatherproof rating for reliable performance in hazardous environments. Ideal for both indoor and outdoor applications, this cable gland ensures secure sealing against dust and moisture, making it perfect for industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Hazardous Weatherproof M75 | IP66/68 Rated | Unarmoured Cable Diameter 46-62mm | Thread Length 20mm | by Wattmaster
Brand: Wattmaster
SKU: ALCBUBM75S
Alternatively Known As: Hazardous Area Cable Gland M75, Weatherproof Cable Gland M75, Explosion Proof Cable Gland, Unarmoured Cable Gland 46-62mm
Technical Specifications
- Cable Diameter Range: 46-62mm
- Thread Length: 20mm
- Ingress Protection: IP66/68 (30m immersion)
- Standards Compliance: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Supplied as standard
- Suitable for unarmoured cables
- Use: Indoor and outdoor hazardous locations
- Dimensions (H x L x W): 40mm x 60mm x 75mm
- Weight: 0.3 kg
Key Features
- Suitable for unarmoured cables with diameter 46-62mm
- Weatherproof design with IP66/68 rating (up to 30m immersion)
- Includes locknut as standard for secure installation
- Certified for use in hazardous areas: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
Professional Installation Requirements
- Installation by a qualified electrician or technician trained in hazardous area equipment is required to ensure compliance and safety.
Applications
- Indoor and outdoor cable sealing in hazardous environments
- Use in gas and dust potentially explosive atmospheres
- Industrial and commercial electrical installations requiring weatherproof cable glands
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable weatherproof design reduces need for frequent replacements
- Seals cables to prevent ingress of dust and moisture, enhancing system longevity
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Cable Gland Hazardous Weatherproof M75 Unarmoured 46-62mm is available for immediate purchase, ideal for hazardous area electrical installations requiring robust cable sealing.
