Cable Gland M100 | IP66 Rated | Nickel Plated Brass & Neoprene Seal | by Cabac
The Cabac A2 Nickel Plated Brass Gland M100 is designed for terminating unarmoured PVC and XLPE sheathed cables, providing dust-tight and weatherproof protection with a durable nickel-plated brass body and neoprene seal.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

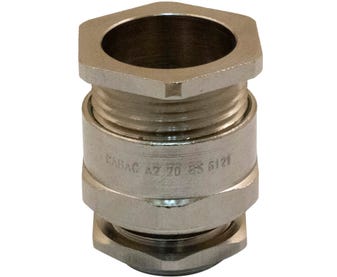

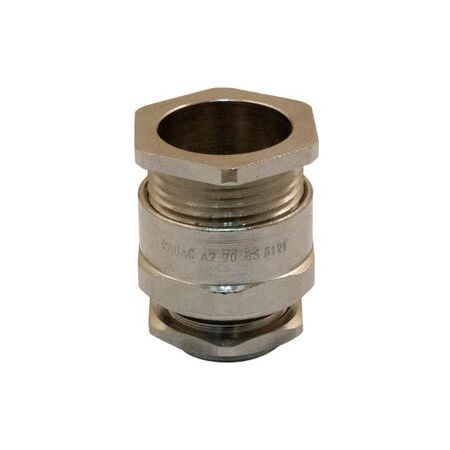

Product Name/Title: Cabac A2 Nickel Plated Brass Gland M100 Cable OD 78.0 - 88.0mm
Brand: Cabac
SKU: A2-100
Alternatively Known As: Cable Gland M100, Nickel Plated Brass Cable Gland, IP66 Cable Gland, Brass Cable Gland for PVC XLPE Cables
Technical Specifications
- Conforms to BS6121: Part 1:2005
- Body Material: Brass
- Seal Material: Neoprene rubber
- Finish: Nickel plated
- IP Rating: IP66
- Operating Temperature Range: -20°C to +130°C
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.5 kg
Key Features
- Nickel-plated brass body offers superior corrosion resistance
- Neoprene seal clamps securely onto the cable sheath
- Rated IP66 for dust-tight and weatherproof protection
- Includes O-ring and locknut for enhanced sealing and secure installation
- Operates in temperatures from -20°C to +130°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- General purpose use with unarmoured PVC and XLPE sheathed cables
- Suitable for industrial and commercial electrical installations requiring secure cable termination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated brass construction reduces the need for frequent replacements
- Weatherproof and corrosion-resistant design extends product lifespan, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac A2 Nickel Plated Brass Gland M100 is available now for immediate purchase. Ideal for secure cable termination in industrial and commercial electrical installations.
