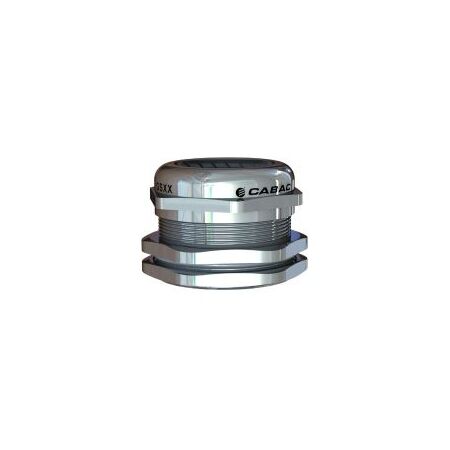

Cable Gland M16 5-10mm Unarmoured Stainless Steel 316 IP68 Cabac
Cabac 316L stainless steel unarmoured cable gland M16 for 5-10mm cable OD features IP68 rating, NBR O-ring and locknut. Ideal for marine and washdown areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M16 stainless steel cable gland, SS316 cable gland, unarmoured cable gland, IP68 cable gland
Technical Specifications
- CABAC Code: GS16
- Cable Acceptance Range: 5–10 mm outside diameter
- Thread Size: M16 x 1.5
- Thread Length: 12 mm
- Spanner Size: 20 mm across flats
- Material: 316L stainless steel
- Claw Material: PA66
- O-Ring Material: NBR
- Ingress Protection: IP68
- Temperature Range, Static: -40°C to 100°C; short-term to 120°C
- Temperature Range, Dynamic: -20°C to 80°C; short-term to 100°C
- Included Components: NBR O-ring and locknut
- Product Type: Unarmoured metric cable gland
- Manufacturer Certifications and Declarations: EN 62444:2013, Low Voltage Directive 2014/35/EU and RoHS 2
- Dimensions (H x L x W): 30mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Suitable for 5–10 mm cable outside diameters
- Certified 316L stainless steel construction for corrosion resistance
- IP68 protection against dust ingress and water ingress
- Supplied with NBR O-ring and locknut
- M16 x 1.5 ISO metric thread
- Suitable for PVC, XLPE and synthetic cable sheaths
- Designed for marine, coastal, salt-spray and industrial washdown environments
- Suitable for wastewater, chemical processing, food, beverage and pharmaceutical equipment
- Suitable for outdoor, mining and general industrial cable-entry applications
Professional Installation Requirements
- Installation in a fixed electrical installation should be performed by a licensed electrician in accordance with the cable manufacturer's instructions, the CABAC installation instructions and applicable requirements of AS/NZS 3000. Select the gland only where the cable outside diameter is within the 5–10 mm acceptance range, and ensure the enclosure, locknut and sealing surfaces are correctly assembled to maintain the IP68 rating.
Applications
- Sealing and securing unarmoured PVC, XLPE and synthetic-sheathed cables
- Marine and coastal electrical equipment
- Industrial washdown areas
- Wastewater treatment plants
- Chemical processing facilities
- Food, beverage and pharmaceutical equipment
- Mining, infrastructure and outdoor electrical enclosures
Standards & Compliance
- AS/NZS 3000:2018 – applicable to the selection and installation of cable glands within Australian electrical installations
- AS/NZS 60529 – applicable ingress-protection classification framework for the stated IP68 rating
Environmental Benefits
- 316L stainless steel is durable and recyclable, supporting recovery at end of service life
- High corrosion resistance can extend service life and reduce replacement waste in marine and washdown environments
- RoHS 2 declaration supports restriction of specified hazardous substances
Warranty Information
CABAC warranty policy provides repair or replacement during the product's marketed lifetime when used as specified by the manufacturer. Where no product-specific warranty is stated, CABAC's policy also refers to a 12-month warranty from the date of purchase, subject to exclusions including misuse, neglect and incorrect installation.
Available Now
Available through CABAC and authorised Australian electrical distributors.
