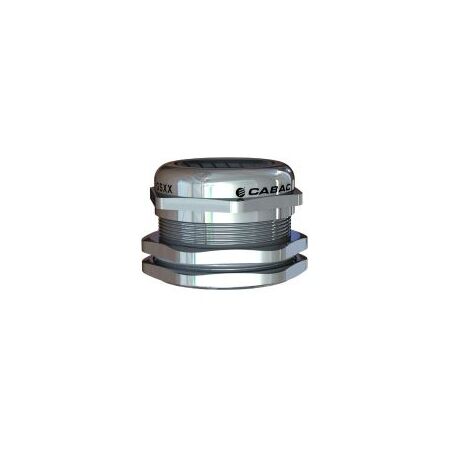

Cable Gland M20 10-14mm Unarmoured Stainless Steel 316 IP68 Cabac
Cabac 316L stainless steel unarmoured cable gland M20 for 10-14mm cable OD features IP68 rating, NBR O-ring and locknut. Ideal for marine and washdown areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M20 stainless steel cable gland, unarmoured cable gland, 316L cable gland, IP68 cable gland
Technical Specifications
- CABAC Code: GS20
- Cable Acceptance Range: 10–14 mm outer diameter
- Gland Type: Unarmoured metric cable gland
- Thread Size: M20 x 1.5
- Thread Length: 12 mm
- Spanner Size: 24 mm A/F
- Body Material: 316L stainless steel
- Claw Material: PA66
- Seal Material: NBR O-ring
- Ingress Protection: IP68
- Static Temperature Range: -40°C to 100°C; short-term to 120°C
- Dynamic Temperature Range: -20°C to 80°C; short-term to 100°C
- Supplied Components: Locknut and NBR O-ring
- Product Standard: EN 62444:2013 cable gland requirements
- Dimensions (H x L x W): 35mm x 35mm x 28mm
- Weight: 0.1 kg
Key Features
- Suitable for 10–14 mm cable outer diameters
- 316L stainless steel construction for corrosion resistance
- Unarmoured design for PVC, XLPE and synthetic cable sheaths
- IP68-rated sealing against dust and water ingress
- M20 x 1.5 metric thread
- NBR O-ring provides enclosure sealing
- Supplied with locknut
- Suitable for marine, coastal, industrial and washdown environments
Applications
- Marine and coastal electrical installations
- Industrial and equipment enclosures
- Washdown areas
- Wastewater treatment plants
- Chemical processing environments
- Food, beverage and pharmaceutical equipment
- Mining, infrastructure and outdoor electrical installations
- Sealing unarmoured cables entering IP-rated enclosures
Standards & Compliance
- AS/NZS 3000:2018 for applicable electrical installation and cable-entry requirements
- AS 60529 for IP code classification and ingress protection reference
Environmental Benefits
- 316L stainless steel can be recycled at end of service life
- Corrosion-resistant construction can extend service life and reduce replacement waste
- RoHS 2 substance-limit compliance is stated by the manufacturer
- IP68 sealing helps protect enclosed electrical equipment from moisture-related damage
Warranty Information
Tradezone lists a 1-year commercial and domestic warranty for the GS20. Australian Consumer Law guarantees also apply; refer to CABAC terms for the applicable claim conditions.
Available Now
Available through CABAC and authorised Australian electrical distributors.
