Cable Gland M20 | IP66 Weatherproof | Nickel Plated Brass | 6.5-13.9mm by Cabac

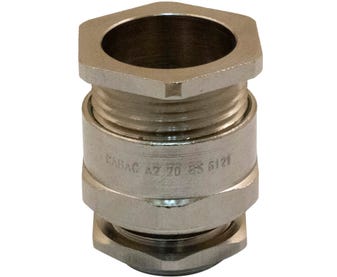

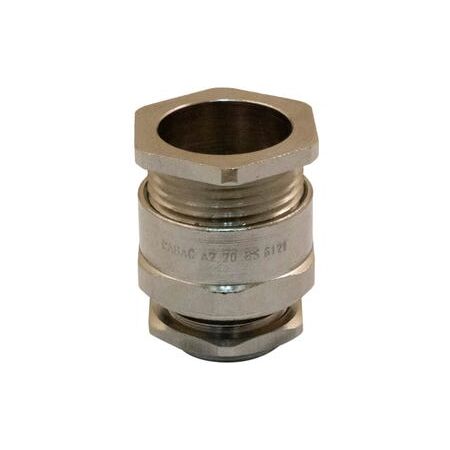

The Cabac A2 Nickel Plated Brass Gland M20 is a general-purpose cable gland designed for unarmoured PVC and XLPE sheathed cables, offering IP66 dust-tight and weatherproof protection with a corrosion-resistant nickel-plated brass body.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac A2 Nickel Plated Brass Gland M20 Cable OD 6.5 - 13.9mm
Brand: Cabac
SKU: A2-20
Alternatively Known As: Cable Gland M20, Nickel Plated Brass Cable Gland, IP66 Cable Gland, Brass Cable Gland for PVC Cable, Cable Gland for XLPE Cable
Technical Specifications
- Conforms to BS6121: Part 1:2005
- Body Material: Brass
- Seal Material: Neoprene rubber
- Finish: Nickel plated
- Mounting Thread Diameter: 20mm
- Thread Length: 10mm
- Minimum Cable Range: 6.5mm
- Maximum Cable Range: 13.9mm
- Dimension Across Corners: 30mm
- Shroud: SH2
- IP Rating: IP66
- Operating Temperature Range: -20°C to +130°C
- Dimensions (H x L x W): 20mm x 20mm x 30mm
- Weight: 0.05 kg
Key Features
- Nickel-plated brass body provides superior corrosion resistance
- Neoprene seal clamps securely onto the cable sheath
- Rated IP66 for dust-tight and weatherproof protection
- Includes O-ring and locknut for enhanced sealing and secure installation
- Operates in temperatures from -20°C to +130°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- General purpose use with unarmoured PVC and XLPE sheathed cables
- Suitable for industrial and commercial electrical installations requiring secure cable termination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated brass construction reduces the need for frequent replacements
- Weather-resistant design minimizes environmental damage and waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac A2 Nickel Plated Brass Gland M20 is available for immediate purchase, ideal for secure cable termination in industrial and commercial electrical applications.
