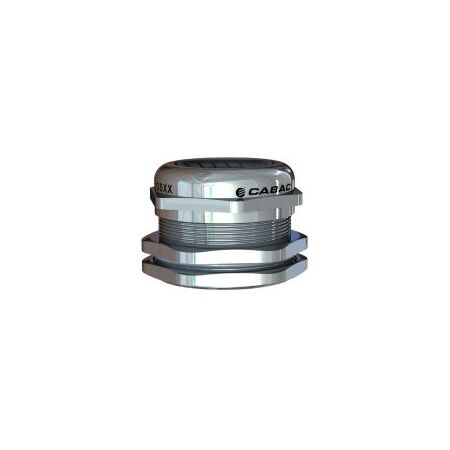

Cable Gland M25 13-18mm Unarmoured Stainless Steel 316 IP68 Cabac

BRAND: CABAC
SKU: GS25
$54.80 List price: $73.10
+ −
30 Days Return Electricians Unlock Trade Access
Cabac 316L stainless steel unarmoured cable gland M25 for 13-18mm cable OD features IP68 rating, NBR O-ring and locknut. Ideal for marine and washdown areas.

Alternatively Known As: 316L Stainless Steel Cable Gland, M25 Cable Gland, Unarmoured Cable Gland, Marine Cable Gland

Technical Specifications
  • CABAC Code: GS25
  • Cable Acceptance Range: 13–18 mm outside diameter
  • Thread Size: M25 x 1.5
  • Thread Length: 12 mm
  • Across Flats: 30 mm
  • Material: 316L stainless steel body
  • Claw Material: PA66
  • Seal Material: NBR O-ring
  • Ingress Protection: IP68
  • Temperature Range, Static: -40°C to 100°C; short-term to 120°C
  • Temperature Range, Dynamic: -20°C to 80°C; short-term to 100°C
  • Certifications and Directives: EN 62444:2013, Low Voltage Directive 2014/35/EU Annex III, RoHS 2
  • Dimensions (H x L x W): 30mm x 50mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Suitable for unarmoured PVC, XLPE and synthetic cable sheaths
  • Corrosion-resistant 316L stainless steel construction
  • IP68-rated protection against dust and water ingress
  • Supplied with NBR O-ring and locknut
  • Metric M25 x 1.5 thread for electrical enclosures and equipment
  • Designed for marine, coastal, salt-spray, washdown and other corrosive environments
  • Suitable for industrial, wastewater, chemical-processing, food, beverage, pharmaceutical, mining and infrastructure applications
Applications
  • Marine and coastal electrical enclosures
  • Industrial and outdoor control equipment
  • Washdown areas and food-processing equipment
  • Wastewater and chemical-processing facilities
  • Mining, infrastructure and general industrial installations
  • Sealing unarmoured power, control and instrumentation cables
Standards & Compliance
  • AS/NZS 60529:2004 – IP68 ingress protection classification for enclosures and cable-entry assemblies
Environmental Benefits
  • 316L stainless steel is durable and recyclable, supporting extended product service life and reduced replacement waste
  • Corrosion resistance helps maintain sealing performance in harsh and salt-laden environments
  • RoHS 2 compliance supports restriction of specified hazardous substances
Warranty Information

CABAC standard warranty is 12 months from the date of purchase where no product-specific warranty is stated, subject to correct installation and use; Australian Consumer Law rights apply.

Available Now

Available through CABAC and authorised Australian electrical distributors.
