Trade Discount 25%

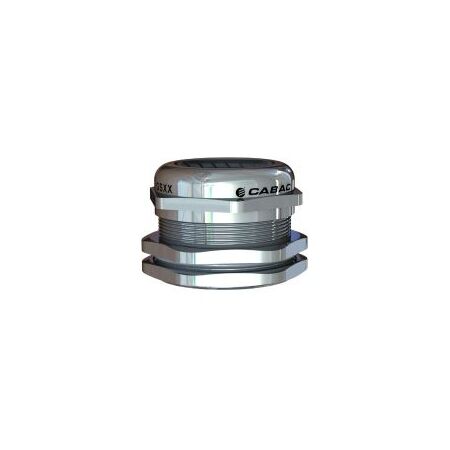

Cable Gland M32 18-25mm Unarmoured Stainless Steel 316 IP68 Cabac
Cabac 316L stainless steel unarmoured cable gland M32 for 18-25mm cable OD features IP68 rating, NBR O-ring and locknut. Ideal for marine and washdown areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M32 Stainless Steel Cable Gland, 316L Metal Cable Gland, Unarmoured Cable Gland, IP68 Cable Gland
Technical Specifications
- Product Code: GS32
- Cable Acceptance Range: 18–25 mm outside diameter
- Thread Size: M32 × 1.5
- Thread Length: 15 mm
- Spanner Size: 40 mm across flats
- Material: 316L stainless steel body
- Claw Material: PA66
- O-ring Material: NBR
- Ingress Protection: IP68
- Temperature Range, Static: -40°C to +100°C; short-term to +120°C
- Temperature Range, Dynamic: -20°C to +80°C; short-term to +100°C
- Cable Type: Unarmoured PVC, XLPE and synthetic sheathed cables
- Included Components: NBR O-ring and locknut
- Manufacturer Compliance: EN 62444:2013, EN/IEC 60529 and RoHS 2
- Dimensions (H x L x W): 40mm x 55mm x 40mm
- Weight: 0.18 kg
Key Features
- 316L stainless steel construction for corrosion resistance
- Suitable for marine, coastal, salt-spray and industrial environments
- IP68 protection against dust ingress and water immersion
- M32 × 1.5 ISO metric thread
- Seals and secures unarmoured cables from 18 to 25 mm diameter
- Supplied with NBR O-ring and locknut
- Suitable for washdown, wastewater, chemical processing, food and beverage applications
Professional Installation Requirements
- Installation should be performed by a licensed electrician or suitably qualified installer in accordance with the manufacturer's instructions and applicable requirements of AS/NZS 3000. Confirm cable diameter, enclosure entry size, sealing surface and tightening procedure before installation.
Applications
- Marine and coastal electrical installations
- Industrial control panels and enclosures
- Outdoor electrical equipment
- Washdown areas
- Wastewater treatment plants
- Chemical processing facilities
- Food, beverage and pharmaceutical equipment
- Mining, infrastructure and general industrial installations
Standards & Compliance
- AS/NZS 3000:2018 – applicable electrical installation and cable-entry requirements
Environmental Benefits
- 316L stainless steel is durable and recyclable, supporting long service life and reduced replacement waste
- Corrosion resistance helps extend product life in marine, coastal and washdown environments
- RoHS 2 compliance restricts specified hazardous substances in the product
- IP68 sealing helps protect enclosed electrical equipment from moisture and contamination, supporting reliable operation
Warranty Information
Covered by CABAC's applicable product warranty and Australian Consumer Law. No product-specific warranty duration was published for the GS32 cable gland; refer to CABAC warranty terms at time of purchase.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock.
