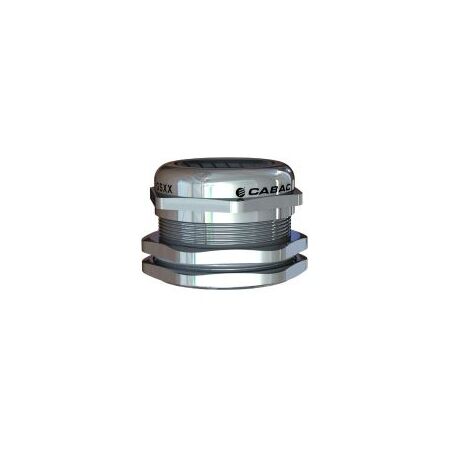

Cable Gland M40 25-33mm Unarmoured Stainless Steel 316 IP68 Cabac
Cabac 316L stainless steel unarmoured cable gland M40 for 25-33mm cable OD features IP68 rating, NBR O-ring and locknut. Ideal for marine and washdown areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Stainless Steel Cable Gland, 316L Cable Gland, M40 Cable Gland, Unarmoured Cable Gland
Technical Specifications
- Product Code: GS40
- Gland Type: Unarmoured metric cable gland
- Thread Size: M40 x 1.5
- Cable Acceptance: 25–33 mm
- Material: 316L stainless steel body
- Claw Material: PA66
- Seal Material: NBR O-ring
- Thread Length: 15 mm
- Across Flats: 50 mm
- Ingress Protection: IP68
- Temperature Range, Static: -40°C to +100°C; short-term to +120°C
- Temperature Range, Dynamic: -20°C to +80°C; short-term to +100°C
- Declared Compliance: EN 62444:2013, Low Voltage Directive 2014/35/EU and RoHS 2
- Dimensions (H x L x W): 45mm x 50mm x 50mm
- Weight: 0.28 kg
Key Features
- Corrosion-resistant 316L stainless steel construction
- Suitable for PVC, XLPE and synthetic sheathed unarmoured cables
- IP68 protection against dust and water ingress
- Supplied with NBR O-ring and locknut
- ISO metric M40 x 1.5 thread
- PA66 internal claw provides cable retention and strain relief
- Suitable for marine, coastal, washdown, industrial and corrosive environments
- Suitable for wastewater, chemical processing, food and beverage, pharmaceutical, mining and infrastructure installations
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrician in accordance with manufacturer instructions, AS/NZS 3000:2018 and applicable site requirements. Verify enclosure entry dimensions, thread engagement, cable diameter and IP rating after installation.
Applications
- Electrical enclosures and control panels
- Marine and coastal electrical installations
- Industrial washdown areas
- Wastewater treatment plants
- Chemical processing facilities
- Food, beverage and pharmaceutical equipment
- Mining and infrastructure installations
- Outdoor cable entries requiring corrosion resistance
Standards & Compliance
- AS/NZS 3000:2018 — applicable wiring and electrical installation requirements for cable entries; site compliance must be verified by the installer
Environmental Benefits
- 316L stainless steel is durable and recyclable, supporting long service life and reduced replacement waste
- Corrosion resistance helps extend service life in marine, coastal and washdown environments
- RoHS 2 declared compliance supports restriction of specified hazardous substances
Warranty Information
Covered by CABAC warranty terms and applicable Australian Consumer Law. No product-specific warranty duration is published; CABAC states that repair or replacement is subject to its warranty conditions and, where applicable, the relevant manufacturer warranty.
Available Now
Available through CABAC and authorised Australian electrical distributors.
