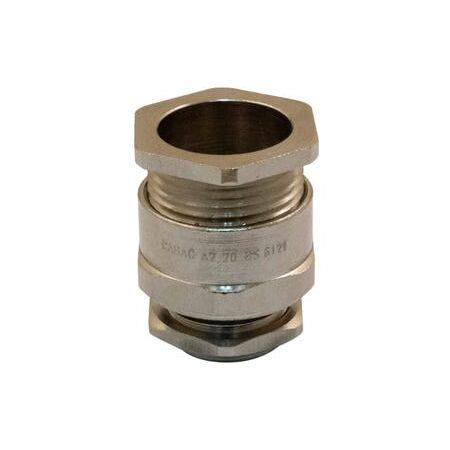

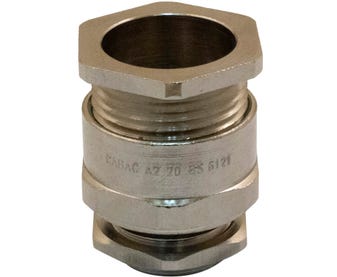

Cable Gland M40 | IP66 Rated | Nickel Plated Brass | 22.0-32.1mm by Cabac
The Cabac A2 Nickel Plated Brass Gland M40 is a general-purpose cable gland designed for unarmoured PVC and XLPE sheathed cables, providing IP66 rated dust-tight and weatherproof protection with a corrosion-resistant nickel-plated brass body.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac A2 Nickel Plated Brass Gland M40 Cable OD 22.0 - 32.1mm
Brand: Cabac
SKU: A2-40
Alternatively Known As: Cable Gland M40, Brass Cable Gland, Nickel Plated Cable Gland, IP66 Cable Gland, Unarmoured Cable Gland
Technical Specifications
- Conforms to BS6121: Part 1:2005
- Body Material: Brass
- Seal Material: Neoprene rubber
- Finish: Nickel plated
- Mounting Thread Diameter: 40mm
- Thread Length: 15mm
- Cable Range: 22.0mm to 32.1mm
- IP Rating: IP66
- Operating Temperature Range: -20°C to +130°C
- Dimensions (H x L x W): 40mm x 15mm x 55.3mm
- Weight: 0.1 kg
Key Features
- Nickel-plated brass body offers superior corrosion resistance
- Neoprene seal clamps securely onto the cable sheath
- Rated IP66 for dust-tight and weather-resistant protection
- Includes O-ring and locknut for enhanced sealing and secure installation
- Operates in temperatures from -20°C to +130°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- General purpose use with unarmoured PVC and XLPE sheathed cables
- Suitable for industrial and commercial electrical installations requiring secure cable termination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated brass construction reduces the need for frequent replacements
- Weather-resistant design minimizes environmental damage and waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac A2 Nickel Plated Brass Gland M40 is available now for immediate purchase. Ideal for electrical installations requiring secure and weatherproof cable termination.
