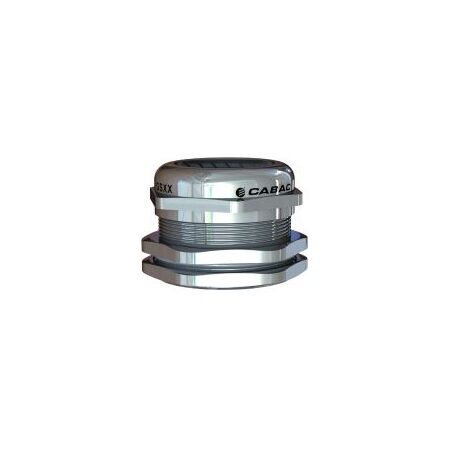

Cable Gland M50 32-38mm Unarmoured Stainless Steel 316 IP68 Cabac
Cabac 316L stainless steel unarmoured cable gland M50 for 32-38mm cable OD features IP68 rating, NBR O-ring and locknut. Ideal for marine and washdown areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: GS50 cable gland, stainless steel cable gland, M50 cable entry gland, marine cable gland
Technical Specifications
- Cable Acceptance: 32–38 mm outside diameter
- Thread Size: M50 x 1.5 ISO metric
- Thread Length: 15 mm
- Spanner Size: 55 mm across flats
- Body Material: 316L stainless steel
- Claw Material: PA66
- Seal Material: NBR O-ring
- Ingress Protection: IP68
- Static Temperature Range: -40°C to 100°C, short-term to 120°C
- Dynamic Temperature Range: -20°C to 80°C, short-term to 100°C
- Applicable Product Standard: EN 62444:2013
- Environmental Compliance: RoHS 2
- Dimensions (H x L x W): 75mm x 75mm x 72mm
- Weight: 0.56 kg
Key Features
- Designed for unarmoured PVC, XLPE and synthetic cable sheaths
- 316L stainless steel construction for corrosion resistance in marine, coastal and industrial environments
- IP68 protection against dust ingress and water penetration
- Supplied with NBR O-ring and locknut
- ISO metric M50 x 1.5 thread
- Suitable for washdown, wastewater, chemical processing, food and beverage applications
- Compatible with optional CABAC SH5 gland shroud
Professional Installation Requirements
- For fixed electrical installations, installation should be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Confirm cable diameter, enclosure thickness and sealing requirements before installation.
Applications
- Marine and coastal electrical enclosures
- Industrial washdown areas
- Wastewater treatment plants
- Chemical processing facilities
- Food, beverage and pharmaceutical equipment
- Mining, infrastructure and outdoor electrical installations
- Sealing unarmoured power, control and instrumentation cables
Standards & Compliance
- AS/NZS 3000:2018 for selection and installation within electrical installations
- AS/NZS 60529 for IP ingress-protection classification principles
Environmental Benefits
- 316L stainless steel is durable and recyclable at end of service life
- Corrosion resistance supports extended service life and reduces replacement waste in harsh environments
- RoHS 2 compliance supports restriction of specified hazardous substances
Warranty Information
CABAC's general warranty provides repair or replacement for defective goods for 12 months from the date of supply, subject to correct installation, intended use and Australian Consumer Law. Misuse, neglect and incorrect installation are excluded.
Available Now
Available through CABAC and authorised Australian electrical distributors.
