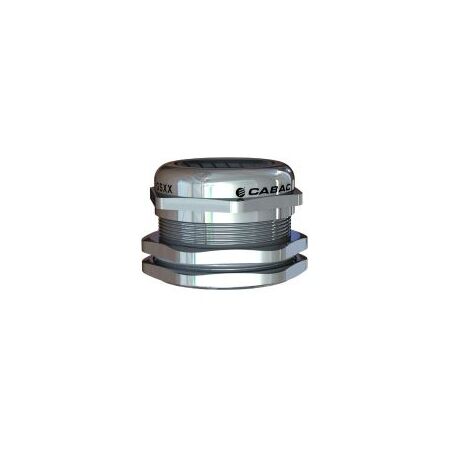

Cable Gland M63 37-44mm Unarmoured Stainless Steel 316 IP68 Cabac

BRAND: CABAC
SKU: GS63
$364.20 List price: $485.60
+ −
30 Days Return Electricians Unlock Trade Access
Cabac 316L stainless steel unarmoured cable gland M63 for 37-44mm cable OD features IP68 rating, NBR O-ring and locknut. Ideal for marine and washdown areas.

Alternatively Known As: M63 Stainless Steel Cable Gland, Unarmoured Cable Gland, 316L Metal Cable Gland, IP68 Cable Entry Gland

Technical Specifications
  • CABAC Code: GS63
  • Cable Acceptance: 37–44 mm
  • Thread Size: M63 x 1.5
  • Thread Length: 18 mm
  • Spanner Across Flats: 66 mm
  • Material: 316L stainless steel body, PA66 claw and NBR O-ring
  • Ingress Protection: IP68
  • Temperature Range, Static: -40°C to +100°C; short-term to +120°C
  • Temperature Range, Dynamic: -20°C to +80°C; short-term to +100°C
  • Cable Type: Unarmoured PVC, XLPE and synthetic-sheathed cables
  • Supplied Components: NBR O-ring and locknut
  • Product Compliance: EN 62444:2013, IP68, Low Voltage Directive 2014/35/EU and RoHS 2
  • Approximate Overall Dimensions: Estimated from published M63 thread, 66 mm across-flats and 18 mm thread length
  • Dimensions (H x L x W): 78mm x 78mm x 66mm
  • Weight: 0.38 kg
Key Features
  • Corrosion-resistant 316L stainless steel construction
  • Accepts unarmoured cable diameters from 37 to 44 mm
  • M63 x 1.5 ISO metric thread
  • IP68 protection against dust and water ingress
  • NBR O-ring provides enclosure sealing
  • Supplied with locknut
  • Suitable for marine, coastal, washdown and other corrosive environments
  • Designed for outdoor, industrial, infrastructure, mining, food-processing and wastewater applications
Professional Installation Requirements
  • Installation should be performed by a suitably qualified electrical contractor in accordance with the equipment manufacturer's instructions and AS/NZS 3000 requirements. Select the correct enclosure entry, tighten the gland to achieve the stated IP rating and ensure the cable sheath is undamaged.
Applications
  • Marine and coastal electrical enclosures
  • Industrial washdown areas
  • Wastewater treatment facilities
  • Chemical processing plants
  • Food, beverage and pharmaceutical equipment
  • Mining and infrastructure installations
  • Outdoor electrical cabinets and control panels
  • Termination and sealing of large unarmoured PVC, XLPE and synthetic-sheathed cables
Standards & Compliance
  • AS/NZS 3000:2018 — relevant installation reference for cable entries and electrical equipment; the CABAC product documentation specifically cites EN 62444:2013 rather than an AS/NZS product certification.
Environmental Benefits
  • 316L stainless steel is durable and recyclable, supporting long service life and reduced replacement waste
  • Corrosion resistance helps extend service life in marine, coastal and washdown environments
  • RoHS 2 compliance supports restriction of specified hazardous substances
  • IP68 sealing helps protect electrical equipment from water and dust ingress, reducing premature component failure
Warranty Information

CABAC's published warranty and returns policy states that, unless otherwise specified, products are covered by a 12-month warranty from the date of purchase, with proof of sale required. ([cabac.com.au](https://www.cabac.com.au/warranties-and-returns?utm_source=openai))

Available Now

Available through CABAC and authorised Australian electrical distributors; confirm current stock and lead time with the distributor.
