Cable Gland M63 | IP68 Rated | Nickel Plated Brass | Wide Cable Compatibility by Cabac

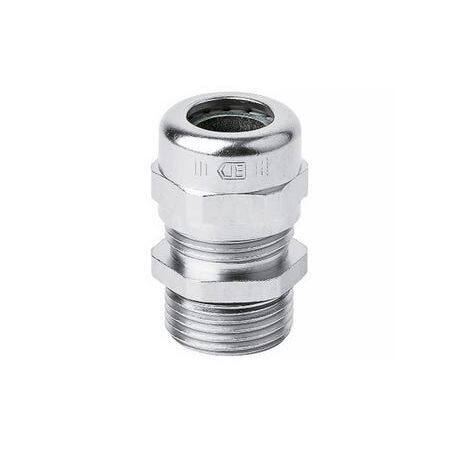

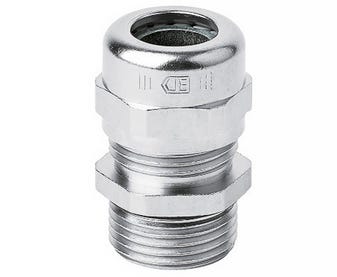

The Cabac Nickel Plated Brass Gland M63 is an unarmoured metric cable gland designed for sealing and securing PVC, XLPE, and synthetic cables. It features a nickel plated brass body, IP68 rating, and a camera shutter style sealing mechanism for wide cable diameter compatibility and excellent ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac Nickel Plated Brass Gland M63 Cable OD 32-42mm
Brand: Cabac
SKU: GU63
Alternatively Known As: Cable Gland M63, Nickel Plated Brass Cable Gland, Unarmoured Metric Cable Gland, IP68 Cable Gland, GU63 Cable Gland
Technical Specifications
- Conformant Standard: DIN 46 319 (brass glands metric)
- IP Rating: IP68
- Threading: According to IEC 423, IEC 423A and EN 60423
- Chemical Resistance: Resistant to normal organic solvents, mineral, animal and vegetable oils, fat and petrol
- Continuous Operating Temperature: -20 to +100 degrees Celsius
- Strain Relief and Twisting Protection: To DIN VDE 0619
- Body Material: Nickel plated brass
- Insert Material: Polyamide 6 (self-extinguishing)
- Seal Material: Neoprene (self-extinguishing)
- O-ring Material: Neoprene (self-extinguishing)
- Dimensions (H x L x W): n/a mm x n/a mm x 65mm
- Weight: 0.3 kg
Key Features
- Nickel plated brass body for corrosion resistance
- Rated IP68 for superior ingress protection
- Camera shutter style sealing mechanism for wide cable diameter range
- Strain relief and twisting protection rated to DIN VDE 0619
- Fully insulated seal ensuring fluid tightness
- Chemical resistant to organic solvents, oils, fats, and petrol
- Continuous operating temperature from -20°C to +100°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing, strain relief, and compliance with electrical standards.
Applications
- Sealing and securing PVC, XLPE, and synthetic cables in industrial and commercial electrical installations
- Use in environments requiring high ingress protection and corrosion resistance
- Suitable for unarmoured metric cables in cable management systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel plated brass construction reduces need for frequent replacements
- Chemical resistance extends product life, minimizing waste
- High ingress protection prevents environmental contamination and cable damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Nickel Plated Brass Gland M63 Cable OD 32-42mm is available now for immediate purchase. Ideal for industrial and commercial cable management applications requiring high ingress protection and durability.
