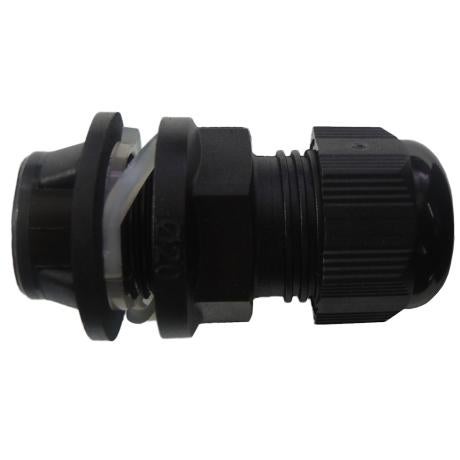

Cable Gland Nylon Fast Fit M25 | 11-17mm Cable Diameter | IP66/68 Rated | Snap-In Installation | by Wattmaster
The Cable Gland Nylon Fast Fit M25 is designed for easy electrical cable entry sealing, accommodating cable diameters from 11-17mm. With an IP66/68 rating, it provides superior protection against dust and water ingress, making it ideal for both indoor and outdoor applications. Its snap-in installation allows for quick, one-handed fitting without the need for locknuts or special tools, ensuring a time-efficient solution for industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Nylon Fast Fit M25 | 11-17mm Cable Diameter | IP66/68 Rated | Snap-In Installation | by Wattmaster
Brand: Wattmaster
SKU: ALCMG25-FF
Alternatively Known As: Nylon Cable Gland M25, Fast Fit Cable Gland, IP66 Cable Gland, Quick Fit Cable Gland
Technical Specifications
- Cable Diameter Range: 11-17mm
- Ingress Protection: IP66/68
- Material: Nylon
- Wall Thickness Compatibility: 0.5mm to 4mm
- Installation: Snap-in push & twist, no locknut or threaded hole required
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Locknut or threaded hole not required
- Can be fitted with one hand
- Time-saving snap-in installation
- Push & twist gland fits in seconds
- Fits wall thickness from 0.5mm to 4mm
- Easy removal with release tool
Professional Installation Requirements
- Installation can be performed by qualified electricians or trained personnel; no special tools required except optional release tool for removal.
Applications
- Electrical cable entry sealing and protection
- Industrial and commercial electrical installations
- Outdoor and indoor cable management requiring IP66/68 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nylon construction reduces need for frequent replacements
- Seals cables to prevent ingress of dust and water, protecting electrical systems and reducing waste
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Nylon Fast Fit Cable Gland M25 is available for immediate purchase, ideal for industrial and commercial electrical cable sealing applications.
