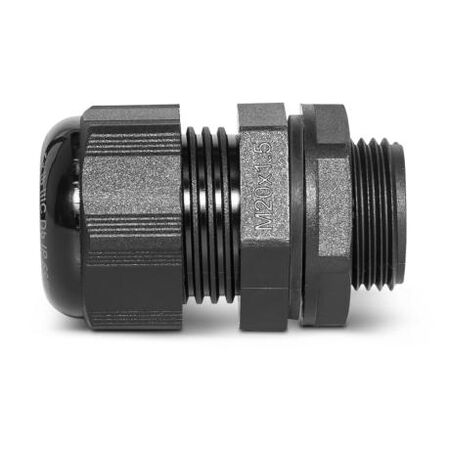

Cable Gland Nylon Hazardous M20 | 6-12mm Cable Diameter | 10mm Thread Length | by Wattmaster
The Cable Gland Nylon Hazardous M20 is designed for non-armoured cables with a diameter range of 6-12mm, featuring a secure 10mm thread length. Ideal for industrial hazardous area installations, it ensures compliance with Ex applications in Zone 1 and Zone 2. Constructed from durable polyamide, this gland includes a locknut for secure fitting, making it perfect for safe and reliable electrical connections in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Nylon Hazardous M20 | 6-12mm Cable Diameter | 10mm Thread Length | by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBUPM20S
Alternatively Known As: Nylon Hazardous Cable Gland M20, Ex Cable Gland Nylon, Hazardous Area Cable Gland M20
Technical Specifications
- Material: Polyamide (Nylon)
- Cable Diameter Range: 6-12mm
- Thread Size: M20
- Thread Length: 10mm
- Suitable for non-armoured cables only
- Ex Application: Group II Gas Group IIC Zone 1/Zone 2, Group III Dust Group IIIC Zone 21/Zone 22
- Includes locknut for secure installation
- Dimensions (H x L x W): 20mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Polyamide construction suitable for hazardous Ex applications
- Comes complete with locknut for secure fitting
- Designed for non-armoured cables with diameter 6-12mm
- Thread length of 10mm
- Recommended use of locknuts and gaskets to maintain IP rating on rough surfaces or through holes
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced in hazardous area equipment to ensure compliance and safety.
Applications
- Industrial hazardous area cable installations
- Use with non-armoured cables in Zone 1 and Zone 2 gas hazardous areas
- Suitable for Group II Gas Group IIC and Group III Dust Group IIIC hazardous zones
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable polyamide material reduces need for frequent replacements
- Supports safe and compliant hazardous area installations minimizing environmental risks
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The Wattmaster Nylon Hazardous Cable Gland M20 is available for immediate purchase, ideal for industrial hazardous area cable installations.
