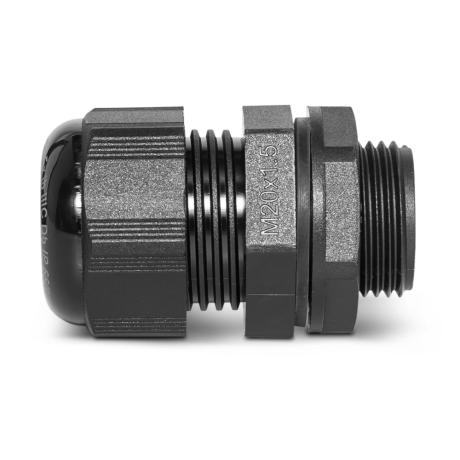

Cable Gland Nylon Hazardous M20 | Polyamide Construction | 10-14mm Cable Diameter | Ex Protection for Zones 1 & 2 | by Wattmaster
The Cable Gland Nylon Hazardous M20 is designed for non-armoured cables with a diameter of 10-14mm, ensuring secure installation in hazardous environments. Made from durable polyamide, it features Ex protection for Group II Gas and Group III Dust applications, making it ideal for industrial electrical wiring in explosive atmospheres. Complete with a locknut, this cable gland guarantees safety and compliance in Zone 1 and Zone 2 locations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Nylon Hazardous M20 | Polyamide Construction | 10-14mm Cable Diameter | Ex Protection for Zones 1 & 2 | by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBUPM20L
Alternatively Known As: Nylon Hazardous Cable Gland M20, Ex Cable Gland M20 Nylon, Hazardous Area Cable Gland, Polyamide Cable Gland M20
Technical Specifications
- Material: Polyamide (Nylon)
- Thread Size: M20
- Cable Diameter Range: 10-14mm
- Thread Length: 15mm
- Suitable for non-armoured cables only
- Ex Protection: Group II Gas Group IIC Zone 1/Zone 2, Group III Dust Group IIIC Zone 21/Zone 22
- Includes locknut for secure installation
- Dimensions (H x L x W): 35mm x 35mm x 20mm
- Weight: 0.1 kg
Key Features
- Polyamide construction suitable for hazardous Ex applications
- Complete with locknut for secure fitting
- Designed for non-armoured cables with diameter 10-14mm
- Suitable for Group II Gas Group IIC Zone 1/Zone 2 and Group III Dust Group IIIC Zone 21/Zone 22
- Recommended use of locknuts and gaskets to maintain IP rating on rough surfaces or through holes
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced in hazardous area electrical installations to ensure compliance and safety.
Applications
- Industrial hazardous area cable installations
- Electrical wiring in Zone 1 and Zone 2 gas hazardous locations
- Dust hazardous environments Zone 21 and Zone 22
- Non-armoured cable protection in explosive atmospheres
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable polyamide material reduces need for frequent replacements
- Supports safe electrical installations in hazardous environments, preventing environmental contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Nylon Hazardous Cable Gland M20 is available for immediate purchase, ideal for hazardous area electrical cable protection in industrial and commercial applications.
