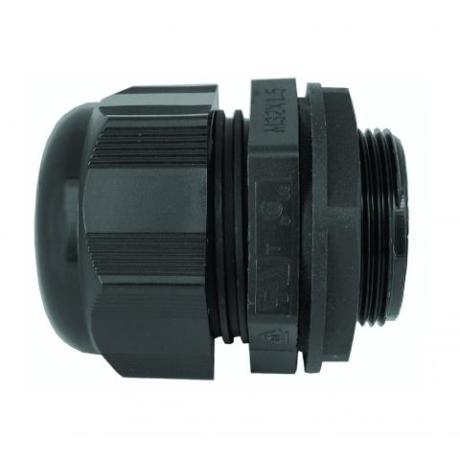

Cable Gland Nylon M12 | 3-6.5mm Cable Diameter | IP66/68 Rated | UV Protected | by Wattmaster
The Cable Gland Nylon M12 is designed for secure cable sealing with a diameter range of 3-6.5mm, making it ideal for both indoor and outdoor electrical installations. With an IP66/68 rating, it provides excellent protection against dust and water ingress, ensuring durability in various environments. This cable gland includes a locknut for added security and is UV protected, making it perfect for long-lasting outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Nylon M12 | 3-6.5mm Cable Diameter | IP66/68 Rated | UV Protected | by Wattmaster
Brand: Wattmaster
SKU: ALCMG12
Alternatively Known As: Nylon Cable Gland M12, IP68 Cable Gland, Waterproof Cable Gland, Polyamide Cable Gland
Technical Specifications
- Cable Diameter: 3-6.5mm
- Material: Polyamide (Nylon)
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (5 Bar)
- Locknut: Supplied as standard
- Suitable for indoor and outdoor use
- UV Protected
- Dimensions (H x L x W): 20mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Suitable for cable diameters 3-6.5mm
- Provides a secure seal on cable sheath
- UV protected for outdoor durability
- Includes locknut as standard
- High ingress protection rated IP66/68 (5 Bar)
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor cable sealing applications
- Electrical installations requiring IP66/68 rated cable glands
- Industrial and commercial wiring protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable UV protected material extends product life reducing waste
- Seals cables to prevent ingress of dust and water, protecting electrical systems and reducing maintenance
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects.
Available Now
Available for immediate purchase, ideal for electrical installations requiring high ingress protection and durable cable sealing.
