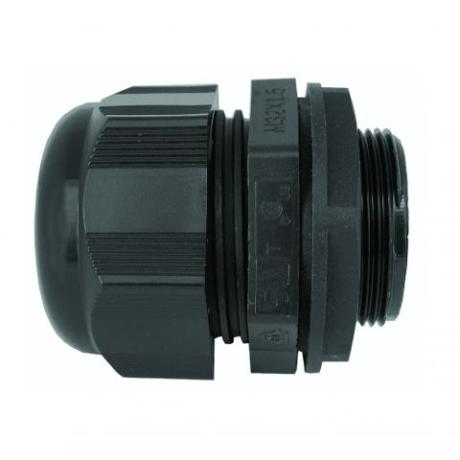

Cable Gland Nylon M16 | IP66/68 Rated | 5-10mm Cable Diameter | Locknut Included | by Wattmaster
The Cable Gland Nylon M16 is designed for secure cable sealing with a diameter range of 5-10mm, featuring high ingress protection rated IP66/68. Ideal for both indoor and outdoor electrical installations, this durable gland includes a locknut for secure fitting and is UV protected for long-lasting performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Nylon M16 | IP66/68 Rated | 5-10mm Cable Diameter | Locknut Included | by Wattmaster
Brand: Wattmaster
SKU: ALCMG16
Alternatively Known As: Nylon Cable Gland M16, IP68 Cable Gland, Waterproof Cable Gland, Polyamide Cable Gland
Technical Specifications
- Material: Polyamide (Nylon)
- Seal Material: Chloroprene
- Cable Diameter Range: 5-10mm
- Ingress Protection: IP66 and IP68 (5 Bar)
- Locknut: Supplied as standard
- Suitable for indoor and outdoor use
- Dimensions (H x L x W): 20mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Suitable for cable diameters 5-10mm
- Provides a secure seal on cable sheath
- UV protected for outdoor durability
- Includes locknut for secure fitting
- High ingress protection rated IP66/68 (5 Bar)
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor cable sealing applications
- Electrical installations requiring dust and water ingress protection
- Industrial and commercial cable management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable UV protected material reduces replacement frequency
- Seals cables to prevent environmental contamination and damage
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Nylon Cable Gland M16 for 5-10mm cable diameter with IP66/68 rating and locknut is available for immediate purchase, ideal for secure cable sealing in industrial and commercial electrical installations.
